maXpeedingrods Forged Connecting Rods for BMW M3 S54B32 6 cyl 800HP
- Section : Sports & Entertainment
- Category : Injection Valves
- SKU : 1600241820541
Overview
Carfitment and part number
| OEM No. | Ref. |
|---|---|
| CR-BW-139B | - |
| Car Fitment | Model | Year | Engine |
|---|---|---|---|
| Other | Other | Other | Other |
Specification
Advantages

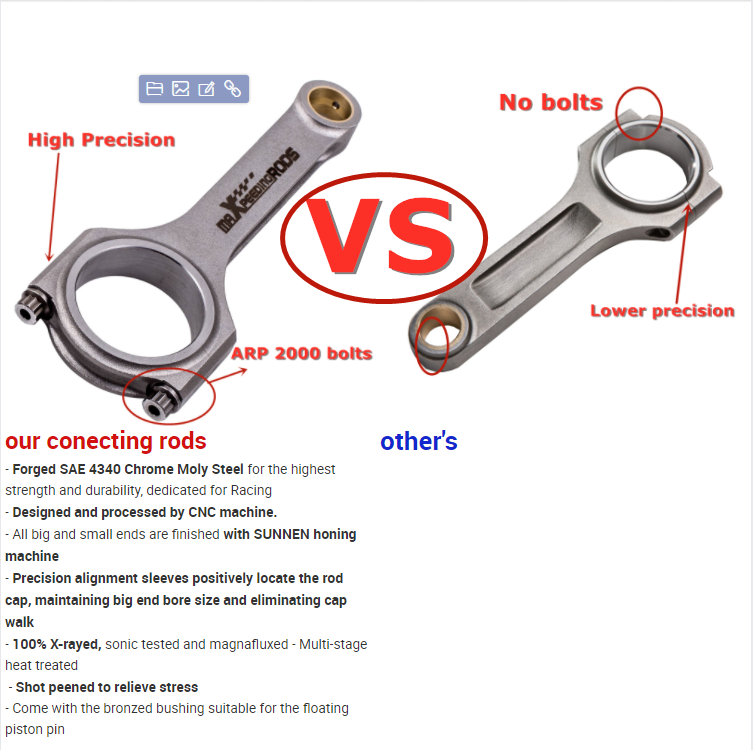

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
For BMW M3 E36 E46 S54B32 6 cyl European model 4340 Forged Steel H-Beam Connecting Rod These rods are quality rods with TUV Certification. NOT bad steel manufactured rods like by other EBay sellers!! | ||||||
| Fit for | BMW M3 E46 E36 S54B32 European model | |||||
| Material | Forged 4340 aircraft chrome moly quality steel | |||||
| Quantity | 6 Pieces as showing in picture | |||||
| Bolts | Including Genuine 3/8" ARP 2000 bolts | |||||
| Weight tolerance | Balanced to +/- 1 gram in set | |||||
| Note | Extra cost for upgrading to ARP L19 bolts | |||||
| Warranty | 2 years warranty. | |||||
| Dimensions | ||||||
| Center to center length | 139mm | |||||
| Big end diameter | 53mm | |||||
| Small end diameter | 21mm | |||||
| Big end width | XX | |||||
| Small end width | XX | |||||
| Specific | - Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing - Designed and processed by CNC machine. - All big and small ends are finished with SUNNEN honing machine - 100% X-rayed, sonic tested and magnafluxed - Multi-stage heat treated - Shot peened to relieve stress - Come with the bronzed bushing suitable for the floating piston pin | |||||
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. Which vehicles and engines do these connecting rods fit?
They are listed for BMW M3 E36 and E46 models with the S54B32 6-cylinder (European model). Verify fitment against your engine block/crank dimensions and part number before purchase, as non-European S54 variants can have differences.
2. What material and rod design are used?
Forged SAE 4340 chrome-moly aircraft-quality steel in an H-beam design, manufactured and finished for racing use.
3. What quality control and finishing processes are performed?
All rods are CNC machined, big and small ends finished on a SUNNEN honing machine, 100% X‑rayed, sonic tested and magnafluxed, multi-stage heat treated and shot peened to relieve stress.
4. How many rods are included and are they balanced?
The set includes 6 connecting rods and they are balanced as a set to +/-1 gram.
5. What fasteners are supplied with the rods?
Genuine 3/8" ARP 2000 bolts are included with the set. An upgrade to ARP L19 bolts is available for an extra cost.
6. Are these rods rated for 800HP as the title states?
The product listing indicates suitability up to 800HP. They are forged 4340 racing rods and engineered for high-power applications, but final capability depends on your build (boost, RPM, supporting components). Consult your engine builder for confirmation.
7. Do these rods support floating piston pins?
Yes. The rods come with bronzed bushings suitable for use with a floating piston pin configuration.
8. What are the key dimensions of the rods?
Center-to-center length: 139 mm. Big end inner diameter: 53 mm. Small end inner diameter: 21 mm. Big-end and small-end widths are not specified in the listing—contact the seller if you need those exact widths.
9. Are these OEM rods or aftermarket, and do they have certifications?
These are aftermarket forged rods (not OEM). The listing states the rods have TUV certification and emphasizes higher-quality 4340 steel construction compared to low-quality alternatives.
10. Is professional installation required?
Yes. Proper installation requires new bearings, correct bolt torque/stretch procedures, verification of big-end clearances, rod-bearing crush, piston-to-wall clearance, and final dynamic balancing. Have a competent machine shop or engine builder perform or check the installation.
11. What torque or installation specs should I use for the ARP bolts?
Follow the ARP torque or angle specifications for the specific bolt (ARP 2000 or L19). ARP provides detailed installation and torque/stage/bolt-stretch procedures—use their documentation or consult your machine shop rather than guessing torque values.
12. Is there a warranty?
The listing states a 2-year warranty. Confirm warranty terms, coverage, and any registration requirements with the seller before purchase.
13. Will these rods require additional clearance for stroker cranks or aftermarket pistons?
Possibly. Because big-end width and small-end widths are not specified, and aftermarket cranks/pistons can change clearances, you should verify clearances for your specific crank and pistons. A machine shop can check and modify clearances if necessary.
14. How can I confirm these rods will work with my engine?
Compare the rod center-to-center length, big and small end diameters, and bolt hole pattern to your stock rods and crank journal sizes. If unsure, provide your VIN/engine details to the seller or consult an engine builder to confirm compatibility.
