The maximum load capacity of the table is 800 kg.
The dimensions of the machine are 2594 mm (L) x 2159 mm (W) x 1770 mm (H).
The spindle taper type is ISO50 7:24.
The spindle speed range is from 30 to 1500 r.p.m.
The machine weighs 3800 kg.
It is capable of milling metal and plastic parts, making it versatile for various applications.
Yes, it is ideal for educational use in technical schools due to its precision machining capabilities.
The rapid feed speed is 2300 mm/min for both the X and Y axes, and 770 mm/min for the Z axis.
The table travel distances are 900/800 mm (X), 315/300 mm (Y), and 380/360 mm (Z).
Yes, the work table can swivel with a maximum angle of ±45°.

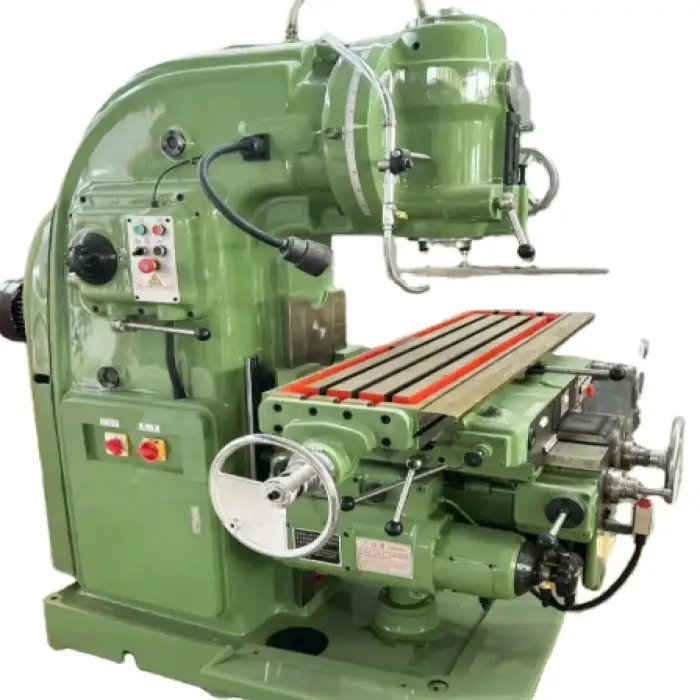

Key features include heavy-duty construction, a large table size, a wide spindle speed range, easy operation, and multifunctional capabilities.
The spindle motor power is 11 kW.
The table size is 1700 mm (L) x 400 mm (W).
It is suitable for milling, creating intricate shapes, precision machining, and repairs or modifications of machinery components.
The machine is manufactured by YIJIN CNC.
