High-Speed Modular SMT Pick and Place Machine Placement System PCB Assembly Line Multi-Feeder Equipment with JUK I RX7 RX8
- Section : Machinery
- Category : Industrial Machinery
- SKU : 1601518545271

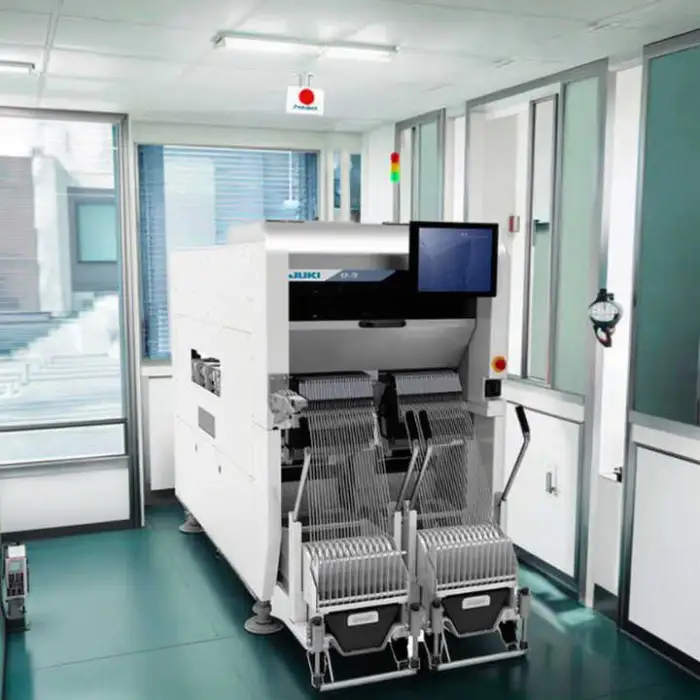

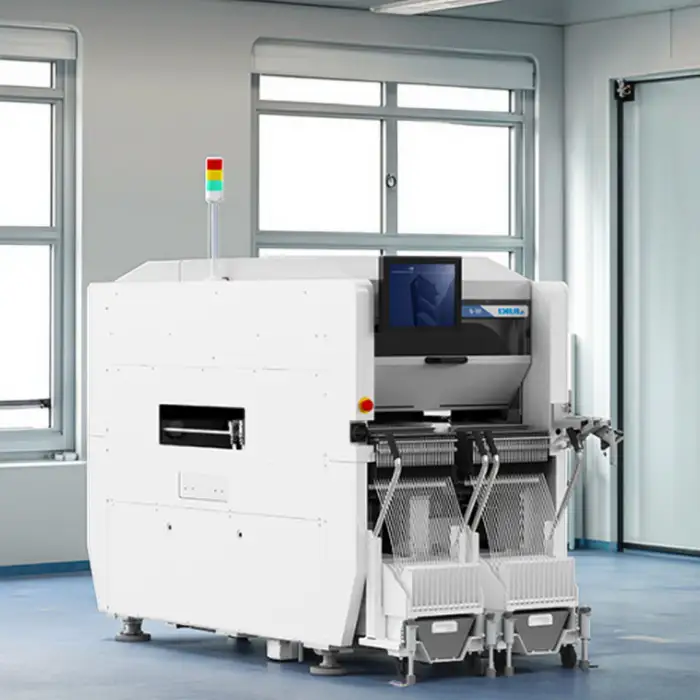

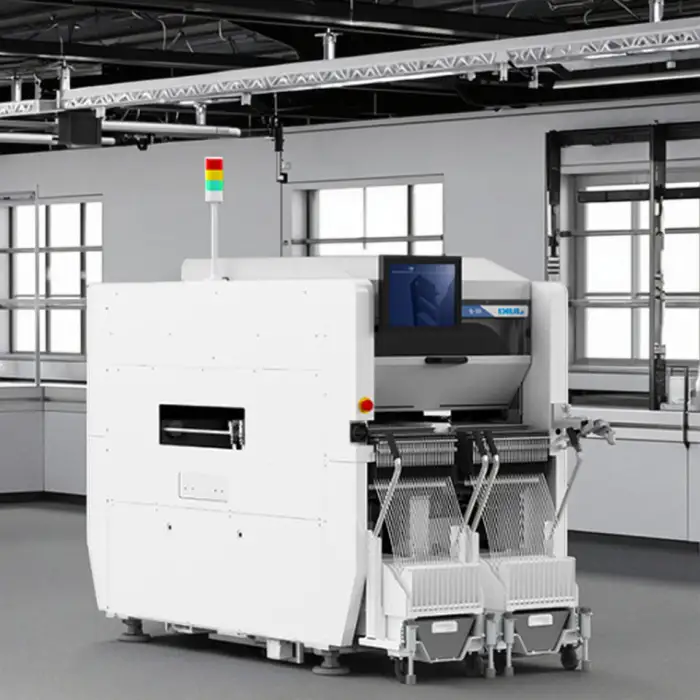

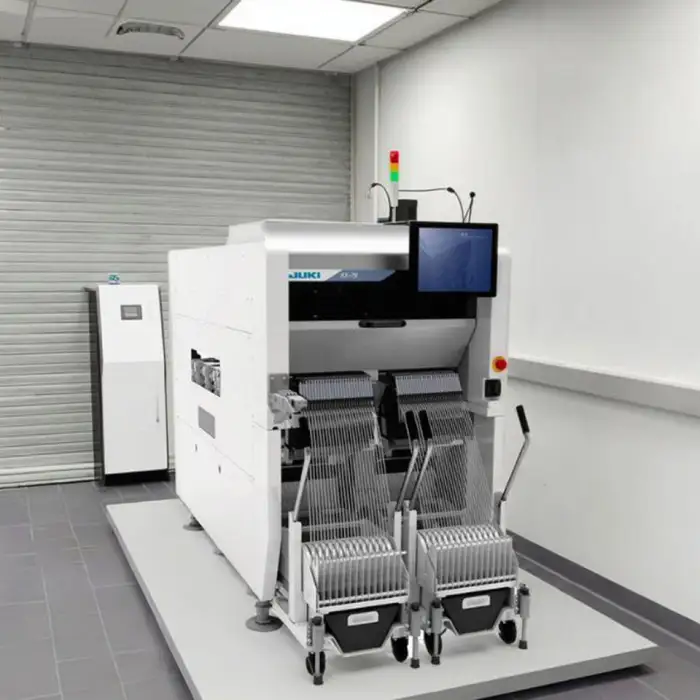

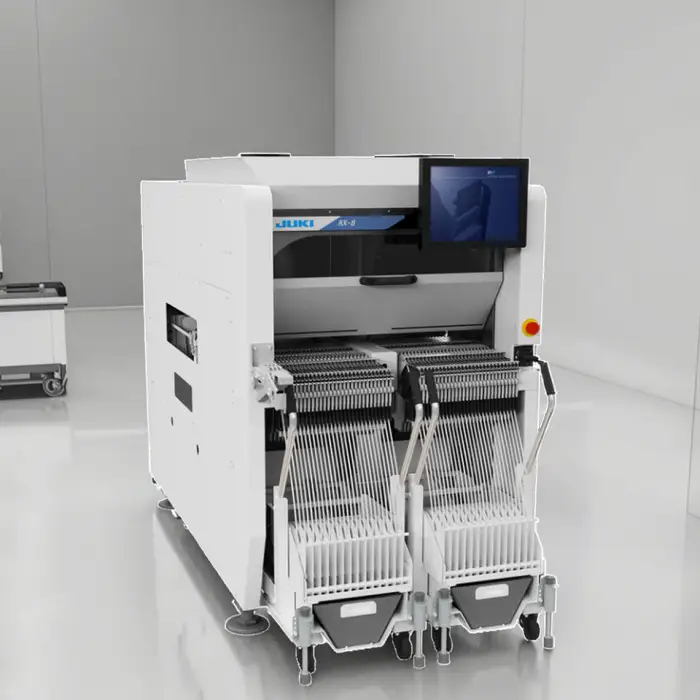

High-Speed Modular SMT Pick and Place Machine Placement System PCB Assembly Line Multi-Feeder Equipment with JUK I RX7 RX8
The High-Speed Modular SMT Pick and Place Machine is a state-of-the-art solution for efficient PCB assembly. Designed for high performance, this machine offers fast speeds and precise placement, making it ideal for various electronic manufacturing needs. With a robust design and advanced technology, the RX-7/RX-8 models are here to enhance your production line.
Specifications
| Attribute | Details |
|---|---|
| Machine Type | Pick and Place Machine |
| Model No | RX-7/RX-8 |
| Mounting PCB Size | 360x250 mm |
| Mounting Accuracy | ±60µm |
| Power Supply | 380 (V) |
| Speed | 49,000 CPH |
| Substrate Transfer Height | 900 ± 20mm |
| Weight | 2000 KG |
| Warranty | 1 Year |
Key Features
- High-speed operation at 49,000 components per hour.
- Accurate placement with ±60µm precision.
- Supports various PCB sizes up to 360x250 mm.
- Robust design with a weight of 2000 KG for stability.
- Easy integration with multi-feeder setups.
Applications
- Ideal for electronics manufacturing and assembly lines.
- Perfect for producing circuit boards and electronic devices.
- Used in automotive, telecommunications, and consumer electronics.
- Suitable for both small and large production runs.
- Enhances efficiency in PCB assembly processes.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 12 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum speed of the High-Speed Modular SMT Pick and Place Machine?
The machine operates at a maximum speed of 49,000 components per hour.
2. What is the mounting accuracy of this pick and place machine?
The mounting accuracy is ±60µm, ensuring precise placement of components.
3. What are the dimensions of PCBs that can be mounted using this machine?
The machine supports PCB sizes up to 360x250 mm.
4. What voltage does the machine require?
The power supply requirement for the machine is 380 volts.
5. How heavy is the High-Speed Modular SMT Pick and Place Machine?
The machine weighs approximately 2000 KG, providing stability during operation.
6. What is the warranty period for this product?
The machine comes with a 1-year warranty.
7. Can the machine be integrated with multi-feeder setups?
Yes, it is designed for easy integration with multi-feeder setups for enhanced efficiency.
8. What types of applications is this machine suitable for?
It is ideal for electronics manufacturing, producing circuit boards, and is used in sectors like automotive, telecommunications, and consumer electronics.
9. Is this machine suitable for both small and large production runs?
Yes, it is suitable for both small and large production runs, enhancing efficiency in PCB assembly processes.
10. What models are included in the RX series?
The machine is available in RX-7 and RX-8 models.
11. What is the substrate transfer height for this machine?
The substrate transfer height is 900 ± 20mm.
12. Does the machine require special installation or setup?
While basic setup is straightforward, it is recommended to consult with a professional for optimal installation based on your production line.
13. What industries can benefit from using this pick and place machine?
Industries such as automotive, telecommunications, and consumer electronics can greatly benefit from this machine.
14. What features enhance the performance of this pick and place machine?
Key features include high-speed operation, accurate placement, support for various PCB sizes, and a robust design.
15. What kind of maintenance does the machine require?
Regular maintenance checks, including calibration and cleaning, are recommended to ensure optimal performance.
