HCCTG Android POS System

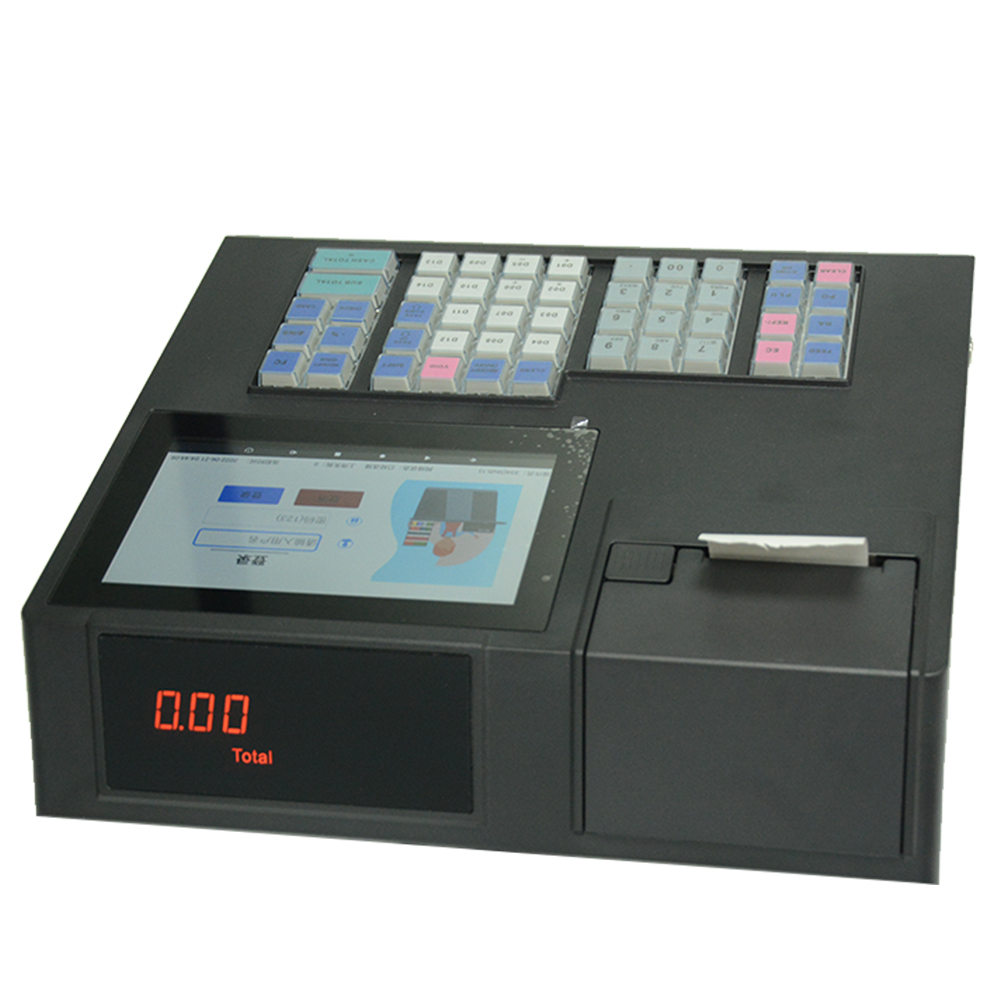

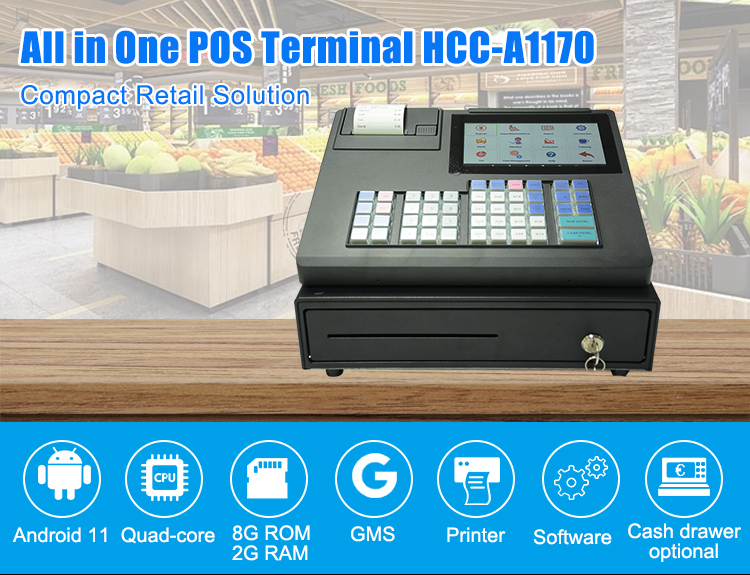

The HCCTG Android POS System is an advanced, all-in-one solution designed for modern retail and hospitality environments. With a sleek design and robust features, it ensures seamless transaction processing, customer interaction, and efficient management.
Key Features
Core Specifications
- CPU: RK3566 Quad-core Cortex-A55, clocked up to 1.8GHz, ensuring smooth operations.
- GPU: ARM G52 2EE for enhanced graphical performance.
- Operating System: Runs on Android 11, supporting a wide range of modern apps.

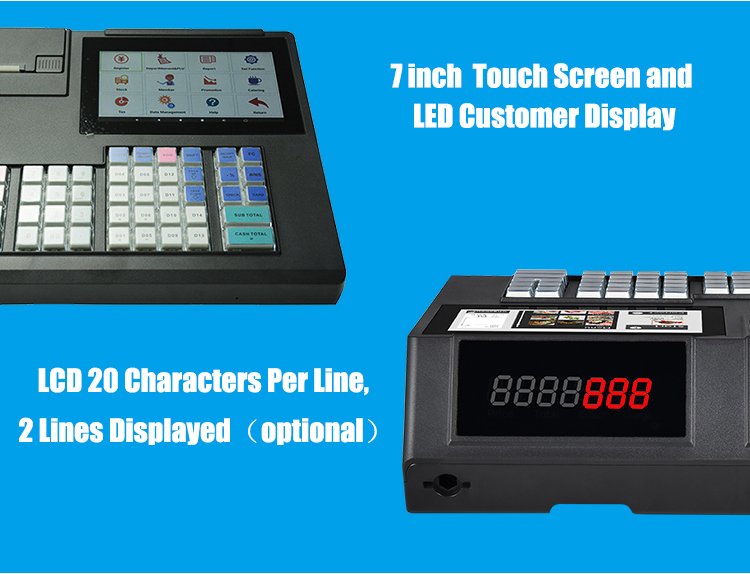

- Main Display:
- Size: 7'' LCD screen with 1024 x 600 resolution.
- Touch: Multi-point capacitive touch for intuitive navigation.
- Customer Display:
- Standard: LED 8-character digital display.
- Optional: LCD display with 20 characters per line, 2 lines visible.
Printer

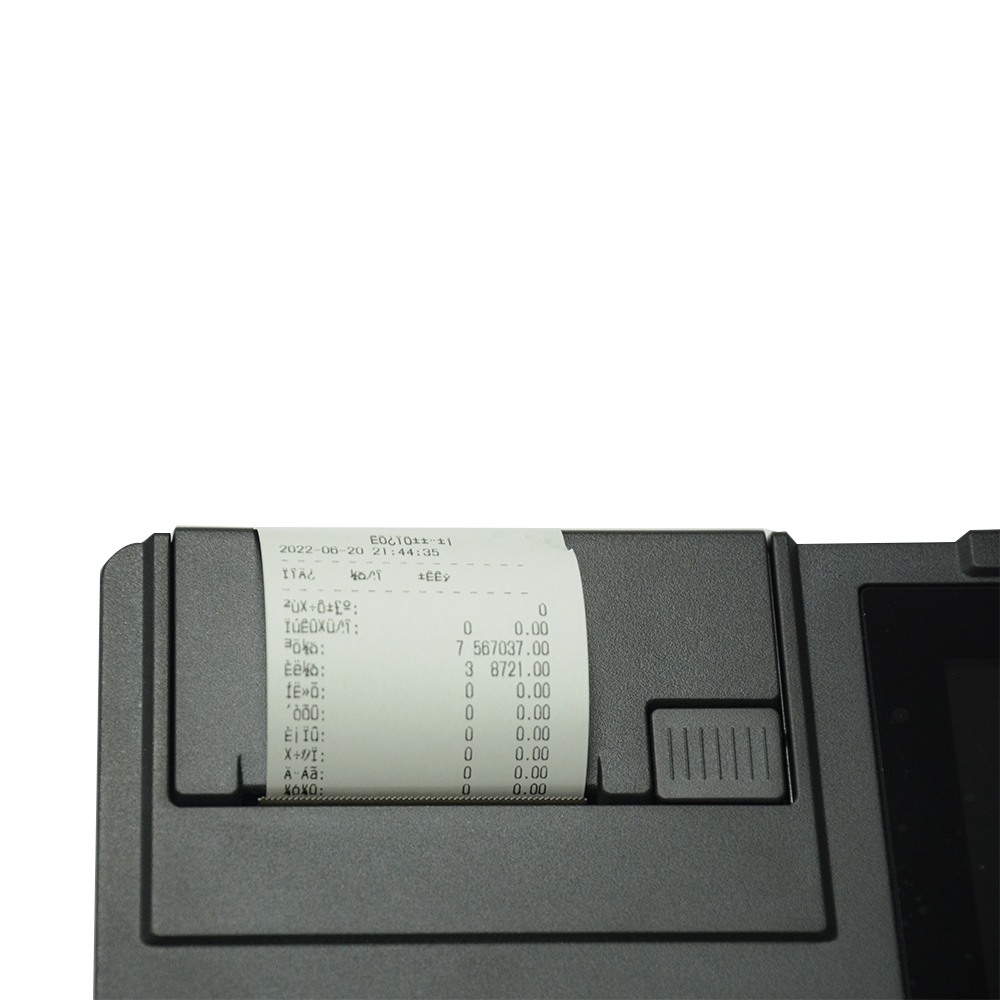

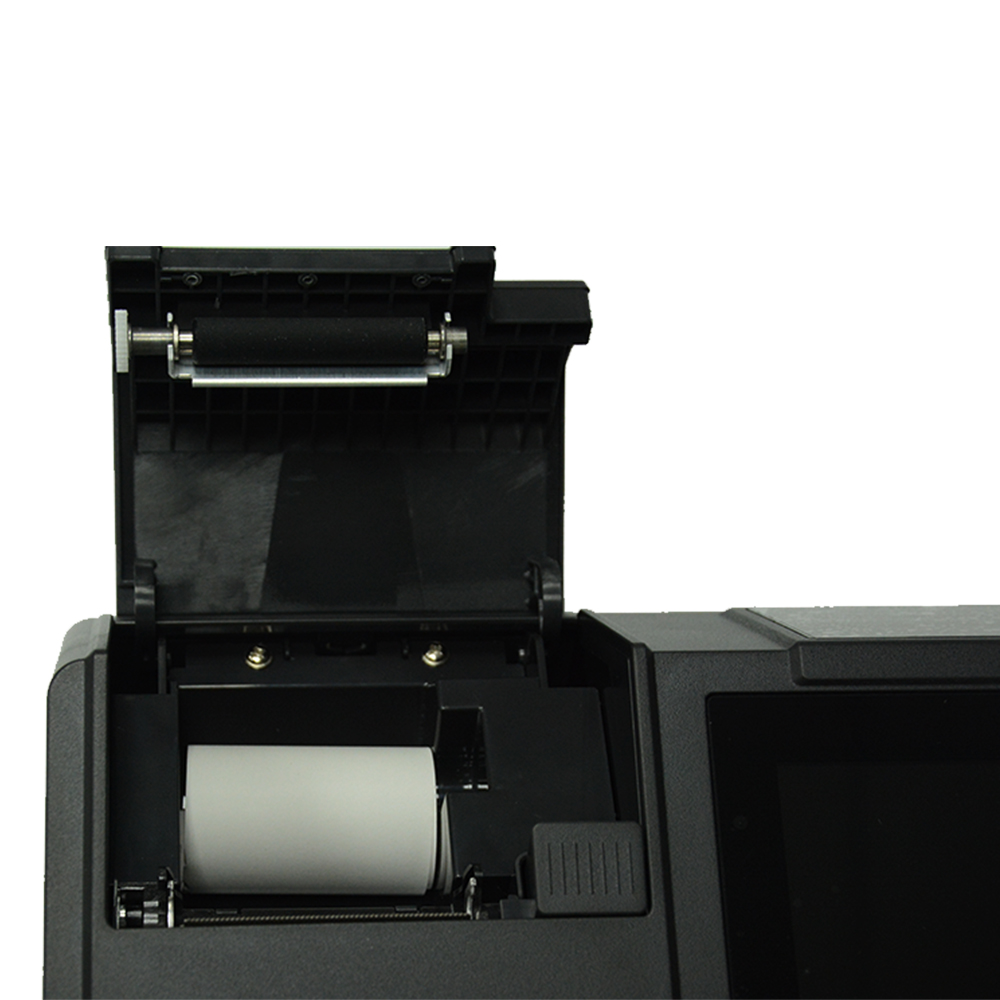

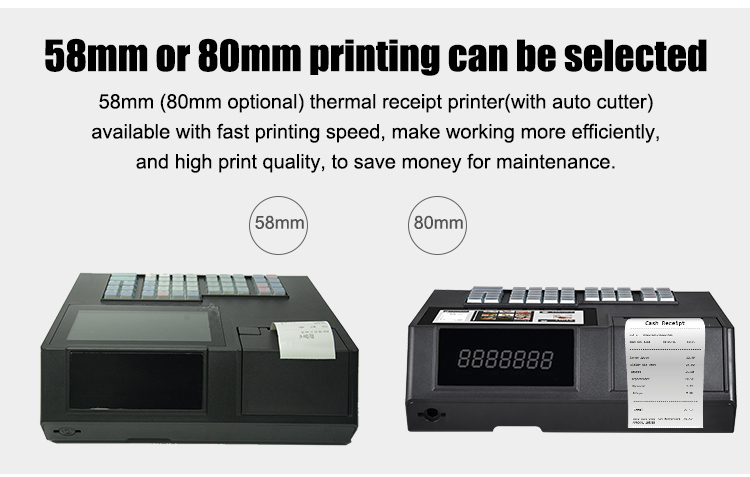

- Type: Built-in 80mm thermal printer with auto-cutter for high-speed and efficient printing.
Power Supply
- Adapter: 24V 4A power adapter.
- System Supply: 12V/4A for consistent and reliable performance.
Connectivity
- I/O Ports:
- 1 Power Button.
- DC Port.
- Cash Drawer Port.
- COM Port.
Cash Drawer (Optional)
- 330J:
- 4 Bill/8 Coin or 5 Bill/4 Coin compartments.
- Dimensions: 335 x 368 x 80mm (W x L x H).
- 410J:
- Adjustable 2–8 Coin compartments with 4 or 5 Bill slots.
- Dimensions: 410 x 416 x 112mm (W x L x H).
Additional Accessories
- 2W Speaker: Enhances audio feedback.
- Dallas Key: For secure access and authentication.
- Optional Add-ons: Cash register and advanced customer displays.
Applications
This POS system is ideal for:
- Restaurants: Efficiently manage orders, payments, and customer interactions.
- Retail Stores: Streamline inventory tracking and billing processes.
- Boutiques and Cafés: Enhance customer experience with advanced displays and quick billing.
Specifications Recap
| Component | Specification |
|---|---|
| Processor | RK3566 Quad-core Cortex-A55 (1.8GHz) |
| Main Display | 7'' LCD, 1024 x 600 resolution |
| Customer Display | LED 8 Characters (standard) |
| Printer | 80mm thermal printer with auto-cutter |
| Power | Adapter: 24V 4A; System: 12V 4A |
| Optional Drawer | 330J or 410J models with adjustable compartments |
| OS Compliance | Android 11 |
The HCCTG Android POS System is a powerful, flexible, and user-friendly solution, perfectly tailored for businesses looking to enhance efficiency and customer satisfaction.
Product Info Gallery
| IO Set | 1*Power Button; 1*DC Port; 1*Cash Drawer Port; 1*COM Port 4*USB Port;1*Network Port; 1TF Card Slot;1*SIM Card Slot(optional); 1*3.5mm Audio Port; |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the HCCTG Android POS System and who is it intended for?
The HCCTG Android POS System is an all-in-one point-of-sale terminal running Android 11, built for modern retail and hospitality environments such as restaurants, cafés, boutiques and retail stores. It combines a 7" touch display, customer display, built-in 80mm thermal printer, and multiple I/O ports for peripherals and payments.
2. What are the main hardware specifications?
Key specs include an RK3566 quad-core Cortex-A55 CPU (up to 1.8GHz), ARM G52 GPU, 7" 1024×600 multi-point capacitive touchscreen, standard 8-character LED customer display (optional 20×2 LCD), and a built-in 80mm thermal printer with auto-cutter.
3. Which operating system does it run and can I install my preferred POS apps?
The unit runs Android 11 and supports Android-based POS applications. Most modern Android POS apps are compatible; for custom integrations or an SDK, contact the vendor for developer documentation and recommended app versions.

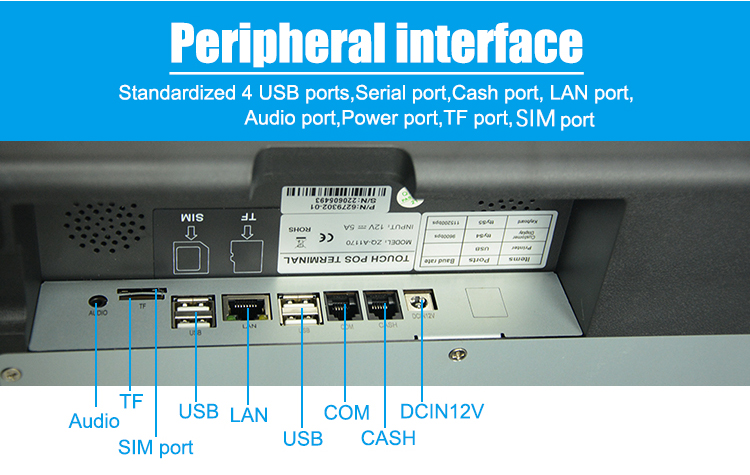

4. What connectivity and I/O ports are available?
I/O includes 1 power button, 1 DC input, 1 cash drawer port, 1 COM port, 4 USB ports, 1 Ethernet network port (RJ45), 1 TF (microSD) card slot, optional SIM card slot (for cellular models), and a 3.5mm audio jack.
5. Does the POS support external payment terminals, barcode scanners and scales?
Yes. External payment terminals, barcode scanners, receipt scanners and scales can be connected via USB, COM or Ethernet depending on the peripheral. For EMV/contactless integrations, use a compatible external payment terminal and consult the payment provider for certification.
6. What are the printer specifications and paper size?
The system includes a built-in 80mm thermal printer with an auto-cutter. It requires standard 80mm thermal paper rolls.
7. Are there optional customer displays or accessories?
Yes. The standard customer display is an LED 8-character readout. An optional LCD customer display (20 characters × 2 lines) is available. Other accessories include optional cash drawer models (330J and 410J), a 2W speaker, Dallas key for secure access, and advanced external customer displays.
8. What cash drawer models are supported and what are their dimensions?
Two optional drawers are available: 330J (4 bill/8 coin or 5 bill/4 coin configurations) with dimensions 335 × 368 × 80 mm (W×L×H), and 410J (adjustable 2–8 coin compartments with 4 or 5 bill slots) with dimensions 410 × 416 × 112 mm (W×L×H).
9. What are the power requirements?
The POS uses a 24V 4A external power adapter. The system supply specification lists 12V/4A for internal components — use only the supplied or vendor-recommended adapter to ensure stable operation.
10. Is cellular connectivity available?
Some configurations include an optional SIM card slot for cellular data. Confirm with your vendor whether your model ships with cellular modem support and which cellular bands are supported.
11. How do I perform software updates and security patches?
Software updates depend on your vendor or integrator. Because the device runs Android 11, app updates come from your POS software provider or Google Play (if enabled). For firmware, drivers and security patches, contact HCCTG or your reseller for official releases and installation instructions.
12. Does the POS include an SDK or developer support for integrations?
The device supports integration of third-party Android POS applications. For an SDK, API documentation, or assistance with peripheral integration (printer, cash drawer, customer display), contact the vendor or reseller to obtain developer resources and technical support.
13. What mounting or placement options are available?
The HCCTG Android POS is designed primarily as a countertop terminal. Optional mounting brackets or stands may be available from the vendor — check with your supplier for compatible mounts or kiosk enclosures.
14. How should I clean and maintain the touchscreen and printer?
Wipe the touchscreen with a soft, lint-free cloth slightly dampened with water or a mild screen cleaner; avoid harsh chemicals or abrasive materials. For the printer, keep the paper path clean and use recommended thermal paper. Follow vendor maintenance guides for periodic checks and safe cleaning procedures.
15. What warranty and technical support options are available?
Warranty terms and support services vary by vendor and region. Contact the reseller or HCCTG representative for details on warranty length, coverage, optional extended support plans and RMA procedures.
