Handheld Scanner - Efficient Barcode Scanning
- Section : Computers
- Category : Networking
- SKU : 1601164908066

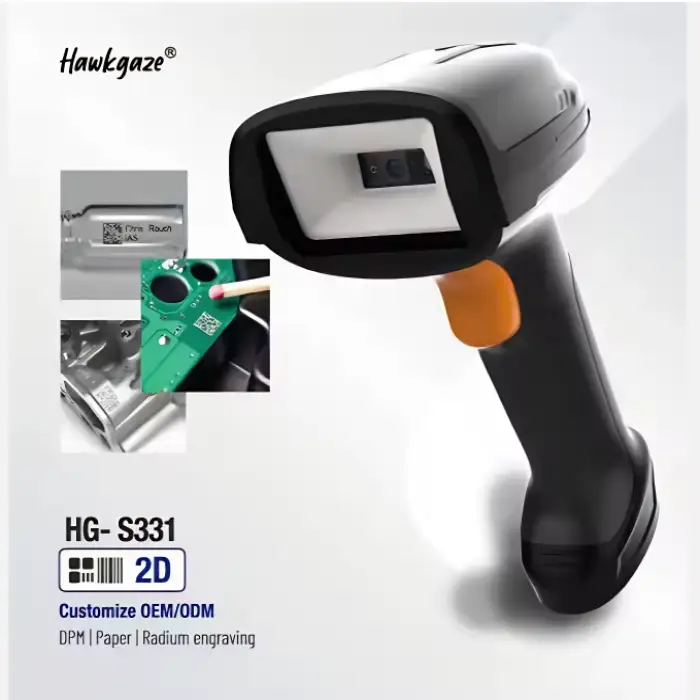

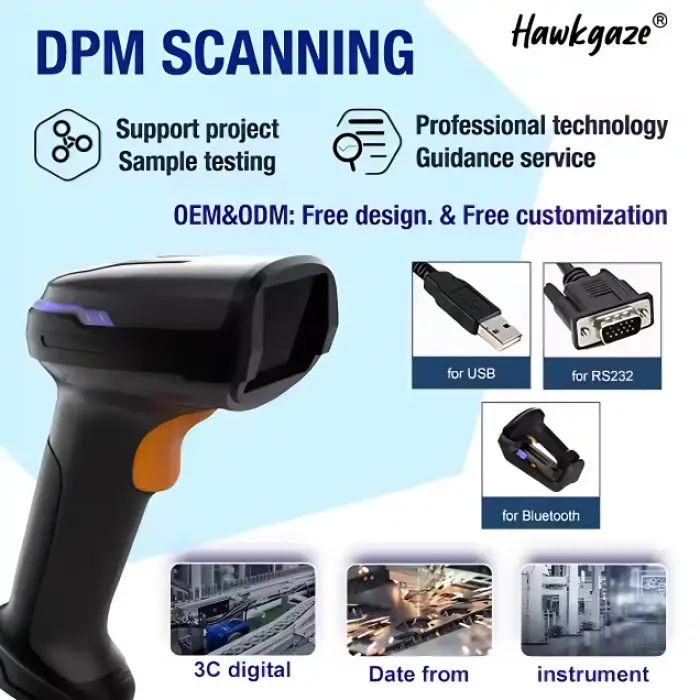

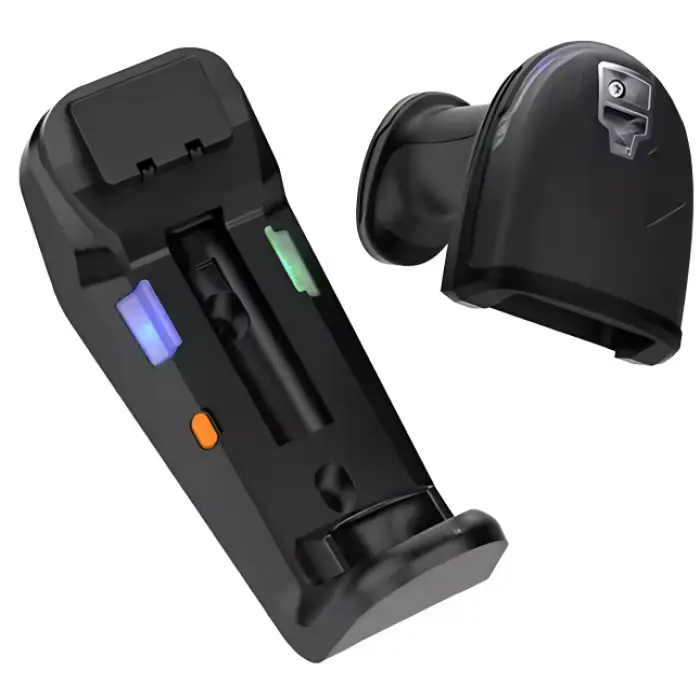

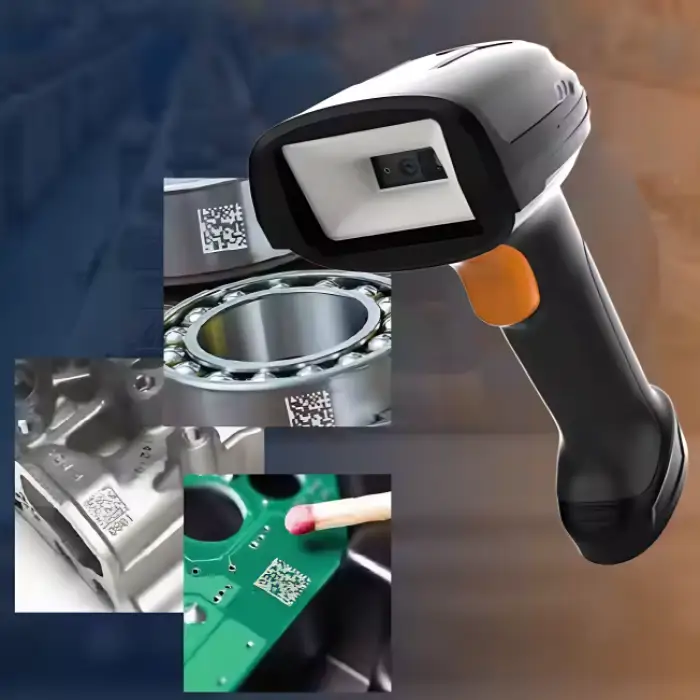

Handheld Scanner - Efficient Barcode Scanning
The Handheld Scanner is designed for quick and efficient barcode scanning, making it ideal for retail, logistics, and industrial applications. With advanced CMOS scanning technology and a durable build, this scanner ensures reliable performance in a variety of environments.
Key Features:
- CMOS Scan Element: Features a high-resolution CMOS sensor, offering a scanning resolution of 1280 pixels (horizontal) by 1080 pixels (vertical) for clear and accurate scans.
- Fast Scanning: This scanner provides fast scanning, improving productivity in high-volume environments by reducing wait times.
- Durable and Rugged: With an industrial-grade design and a drop resistance of up to 1.8 meters, it is built to withstand tough working conditions. It is also rated IP54 for water and dust resistance, ensuring reliability in challenging environments.
- Lightweight and Portable: Weighing only 310g, this handheld scanner is easy to carry and use, reducing operator fatigue during long scanning sessions.
- USB 1.1 Interface: Easy to connect with your system using the standard USB 1.1 interface, making it compatible with most devices.
- Compact Dimensions: With a size of 151.9 mm H x 98.1 mm L x 68 mm W, the scanner is compact and fits comfortably in your hand.
- Wide Paper Size Compatibility: It supports scanning up to 40 cm of paper size, making it versatile for different types of documents and barcodes.
- Operating Current: The scanner operates with a current of 260 mA ±5%, ensuring efficient energy use.
| Scanning Performance | |
| Pixel | 1280Pixels(H)x1080 Pixels(v) 1.3 Megapixel C-MOS |
| Illumination | Strong White Light, Laser Cross Aiming |
| Scan Distance | 50mm-330mm@UPcA -13 mil 100% (PCs=90%) 40mm-70mm @code 39-3 mil( PCs=90%) |
| Scanning Method | Pushbutton mode, auto-sensing, external trigger mode, serial command mode |
| Code system | 1D UPC A, UPC E, EAN8 , EAN 13 , Code 128, Code 39, Code 93 , Codabar, Plessey, Msl, Interleaved 2 of 5 |
| 2D Data Matrix , QR Code , Micro QR , PDF417, MicroPDF417, Aztec , Maxicode | |
| Readability | 1D :≥3 mil, 2D:≥5 mil |
| Typical Reading Depth of Field | Barcode Specifications GXH-113HD |
| Code39(3mil) 40mm-100mm | |
| Code39(5mil) 35mm-140mm | |
| QR (5mil) 35mm-190mm | |
| EAN/UPC(13mil) 50mm-330mm | |
| Field of View Angle | 43°(H), 36°(V) |
| Battery Capacity | 3200mAh |
| Print Contrast | Greater than 20 per cent (UPC/EAN 100 per cent) |
| Mechanical & Electrical Parameters | |
| Appearance Dimension | Main body:181x136x77mm Base:87x220x82mm |
| Weight (Without Cable) | Wired:≈260g Wireless(with battery):≈310g Dock:≈250g |
| Communication Interface | USB 1.1(HID Keyboard,Virtual COM Port)Rs-232 Serial Port |
| Wireless Dual-Mode | Bluetooth HID/SPP/BLE,2.4G |
| Communication Distance | 100 metres in the open |
| Alert Mode | Buzzer, LED Indicator, Vibrator |
| Working Voltage | DC 5V 5% |
| Working Current | 260 mA 士5%(typ),380 mA 士5%(max) |
| Environmental Parameters | |
| Working Temperature | -20°C~+50°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 5%~95%(non-condensing) |
| Static Protection | ±12 kV (air discharge), ±8 kV (direct discharge) |
| Drop Height | 1.8m |
| Protection Grade | IP65 |
The Handheld Scanner is a reliable and efficient solution for all your barcode scanning needs, offering high performance, durability, and ease of use. Whether for retail, warehouse, or industrial use, this scanner ensures that you can capture accurate data quickly.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What types of barcodes can the Handheld Scanner read?
The Handheld Scanner can read various types of 1D and 2D barcodes, including UPC A, UPC E, EAN8, EAN 13, Code 128, Code 39, Code 93, Codabar, Data Matrix, QR Code, PDF417, and more.
2. What is the scanning resolution of the Handheld Scanner?
The scanner features a high-resolution CMOS sensor with a scanning resolution of 1280 pixels (horizontal) by 1080 pixels (vertical).
3. Is the Handheld Scanner suitable for outdoor use?
Yes, the Handheld Scanner is rated IP54 for water and dust resistance, making it suitable for various outdoor environments.
4. How far can the scanner read barcodes?
The scanning distance varies by barcode type, ranging from 40mm to 330mm for UPC A at 13 mil, and up to 190mm for QR codes at 5 mil.
5. What is the weight of the Handheld Scanner?
The Handheld Scanner weighs approximately 310g when wireless and around 260g when wired, making it lightweight and portable.
6. How does the scanner connect to devices?
The scanner connects via a standard USB 1.1 interface and is compatible with most devices.
7. What is the drop resistance of the Handheld Scanner?
The Handheld Scanner is designed to withstand drops from a height of up to 1.8 meters.
8. What scanning methods does the scanner support?
The scanner supports multiple scanning methods, including pushbutton mode, auto-sensing, external trigger mode, and serial command mode.
9. What is the operating current of the Handheld Scanner?
The scanner operates with a current of 260 mA ±5%, ensuring efficient energy use.
10. Can the scanner be used for long periods without causing fatigue?
Yes, the lightweight design of only 310g reduces operator fatigue during extended use.
11. What is the working temperature range for the scanner?
The Handheld Scanner operates within a temperature range of -20°C to +50°C.
12. Does the scanner have wireless capabilities?
Yes, the Handheld Scanner offers wireless dual-mode communication via Bluetooth and 2.4G.
13. What is the battery capacity of the Handheld Scanner?
The scanner features a battery capacity of 3200mAh, ensuring reliable performance during use.
14. What type of illumination does the scanner use?
The Handheld Scanner uses strong white light and laser cross aiming for effective scanning.
15. What are the dimensions of the Handheld Scanner?
The dimensions of the Handheld Scanner are 151.9 mm H x 98.1 mm L x 68 mm W, making it compact and easy to handle.
