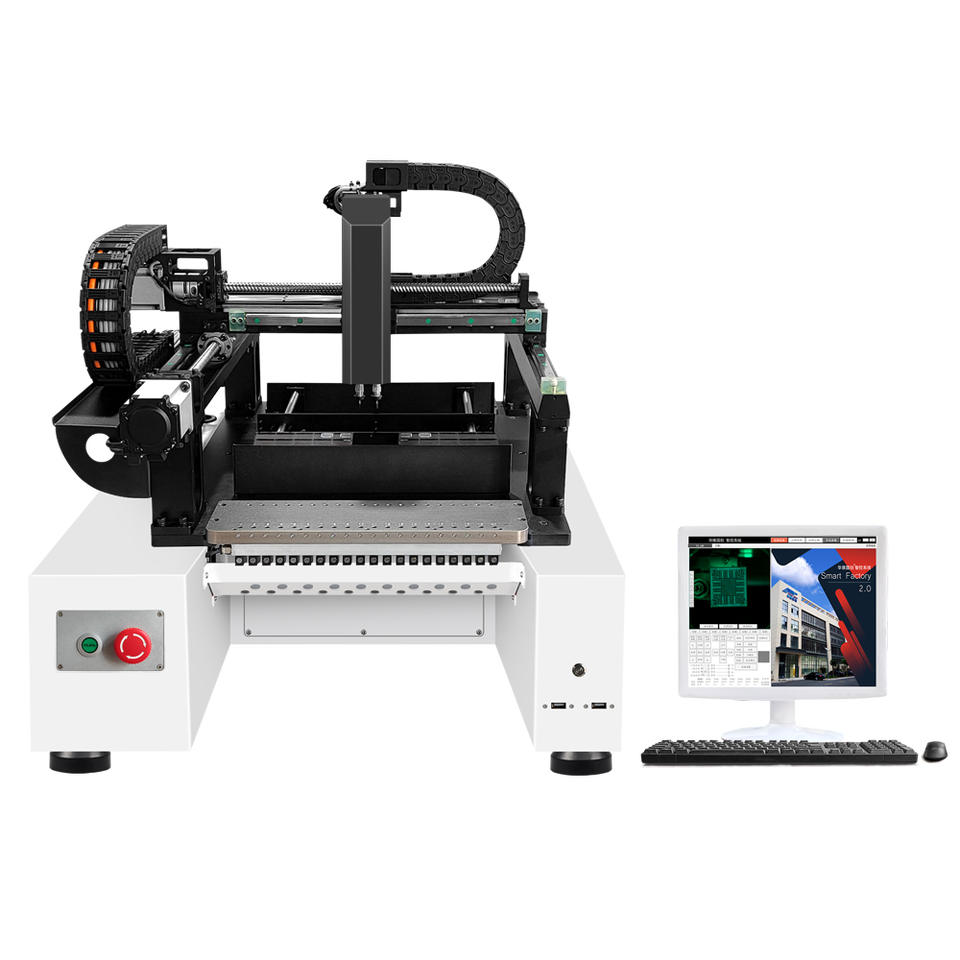

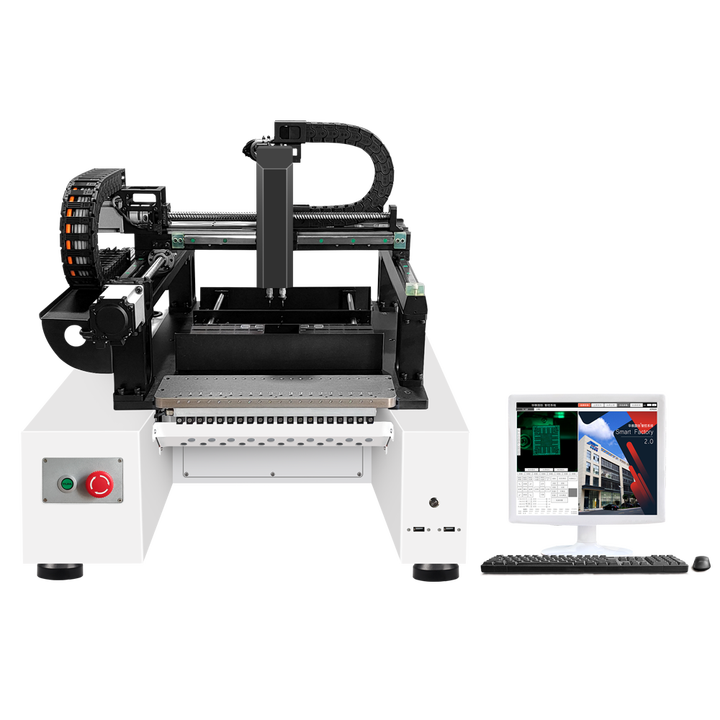

Full Automatic SMT Production Line LED PCB Board Making Machine with Gearbox and Bearing Pick Place Machines Manufacturing

The Full Automatic SMT Production Line LED PCB Board Making Machine is designed for efficiency and precision. It is perfect for manufacturing high-quality printed circuit boards (PCBs) with ease. This machine supports a variety of components and offers impressive accuracy and speed, making it an ideal choice for your production needs.

Specifications

Attribute	Details
Product Size	2020 x 1775 mm²
Available Element Size	≤7 mm
Component Angle Support	±180°
Continuous Working Hours	Can work continuously > 24H without shutdown
Free Replacement Parts	Yes, with online technical support
Warranty	1 Year
Patch Accuracy	0.05 mm
Patch Area	320 x 230 mm - 50 x 50 mm
Patch Speed	1500 - 3000 pcs/h
Repeat Loading Accuracy	0.05 mm
Scope of Patch	0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, 30 x 30 mm
Weight	76.000 kg
Feeder Types	Electric feeder, pneumatic feeder, vibration feeder, IC tray, etc.
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear

Key Features

Fully automatic operation for high efficiency.
Supports a wide range of component sizes.
High patch accuracy of 0.05 mm.
Fast patch speed between 1500 to 3000 pcs/h.
Continuous operation for over 24 hours.
Includes free replacement parts and online support.
1-year warranty for peace of mind.

Applications

Manufacturing LED PCB boards.
Producing electronic devices and gadgets.
Assembling components for consumer electronics.
Creating circuit boards for various industries.
Supporting rapid prototyping of electronic designs.
