Full Automatic Charmhigh Chip Mounter PCB Assembly Line Led Making Machine SMT Production Line SMD Pick and Place Machine
- Section : Machinery
- Category : Paper Production Machinery
- SKU : 1601354784452

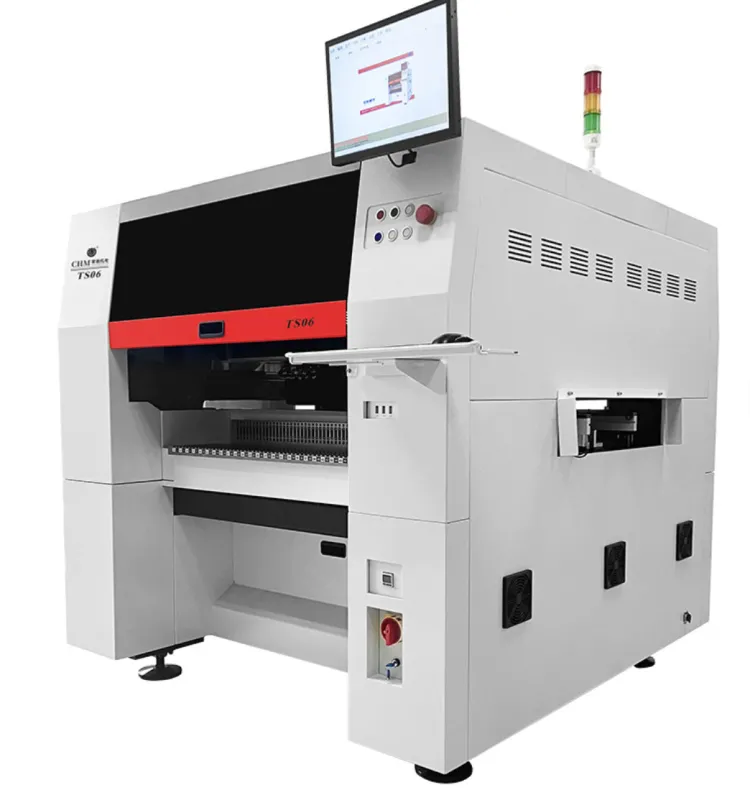

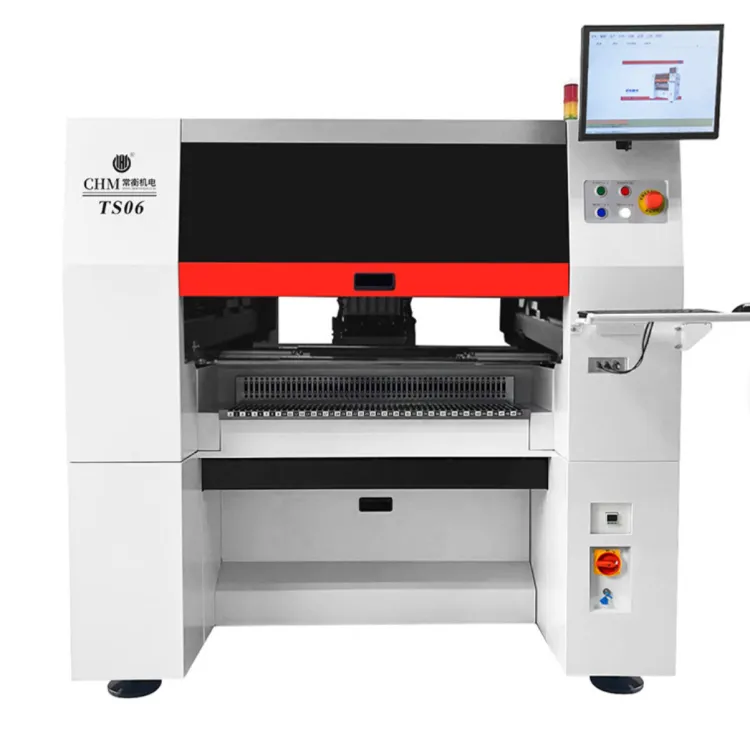

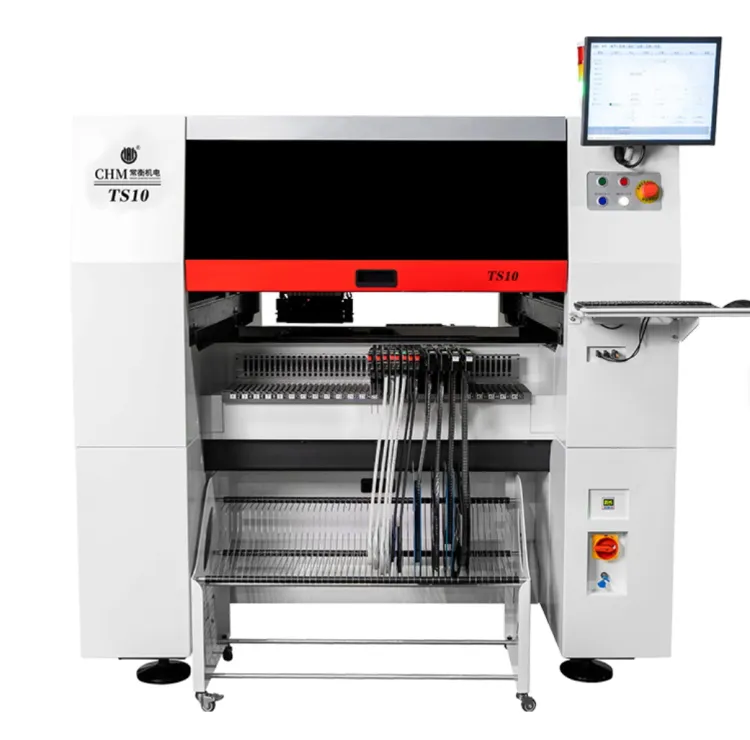

Full Automatic Charmhigh Chip Mounter PCB Assembly Line Led Making Machine SMT Production Line SMD Pick and Place Machine
The Full Automatic Charmhigh Chip Mounter is a state-of-the-art machine designed for efficient PCB assembly. This machine simplifies the process of placing surface mount devices (SMD) on printed circuit boards (PCBs). With advanced features and high accuracy, it is perfect for businesses looking to enhance their production capabilities.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | Charmhigh |
| Weight (kg) | 1930 |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Provided |
| Core Components | Motor, Pump |
| Model Number | TS10 + TS06 |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Accuracy (XY) | ±0.035mm |
| CPK | ≥1.0 |
| PCB Size (Standard) | 600mm(L) * 400mm(W) |
| PCB Size (Optional) | 1200mm(L) * 400mm(W) |
Key Features
- Fully automatic operation for easy use.
- High precision mounting with ±0.035mm accuracy.
- Built-in vacuum pump for reliable operation.
- Supports various PCB sizes for flexibility.
- Comprehensive inspection and test reports included.
Applications
- Electronics manufacturing for assembling PCBs.
- Production of LED lights and other small devices.
- Suitable for both small and large scale production.
- Ideal for companies looking to automate their assembly line.
- Used in creating prototypes and testing new designs.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the weight of the Full Automatic Charmhigh Chip Mounter?
The Full Automatic Charmhigh Chip Mounter weighs 1930 kg.
2. What is the mounting accuracy of this machine?
The mounting accuracy of the machine is ±0.035mm.
3. What types of PCB sizes can this machine accommodate?
The machine supports a standard PCB size of 600mm(L) * 400mm(W) and an optional size of 1200mm(L) * 400mm(W).
4. Is the machine fully automatic?
Yes, the Full Automatic Charmhigh Chip Mounter operates fully automatically for easy and efficient use.
5. What core components are included in this machine?
The core components of the machine include a motor and a pump.
6. Are test reports available for this machine?
Yes, the machine comes with a machinery test report and video outgoing inspection provided.
7. What is the purpose of the built-in vacuum pump?
The built-in vacuum pump ensures reliable operation during the mounting process.
8. What industries can benefit from using this machine?
The machine is ideal for electronics manufacturing, LED production, and both small and large-scale assembly lines.
9. Can this machine be used for prototype creation?
Yes, it is suitable for creating prototypes and testing new designs.
10. What is the CPK value of the machine?
The CPK value of the machine is ≥1.0, indicating high process capability.
11. Is training provided for using this machine?
While specific training details may vary, most suppliers offer guidance and support for operating the machine.
12. What type of devices can be assembled using this machine?
The machine is designed for placing surface mount devices (SMD) on printed circuit boards (PCBs).
13. How does the machine enhance production capabilities?
The machine enhances production capabilities through its fully automatic operation, high precision, and ability to handle various PCB sizes.
14. What are the key features of this SMT production line?
Key features include fully automatic operation, high precision mounting, built-in vacuum pump, and comprehensive inspection reports.
15. Can this machine handle large-scale production?
Yes, it is suitable for both small and large-scale production needs.
