Flashforge Creator 5 High-Speed Multi-Color 3D Printer

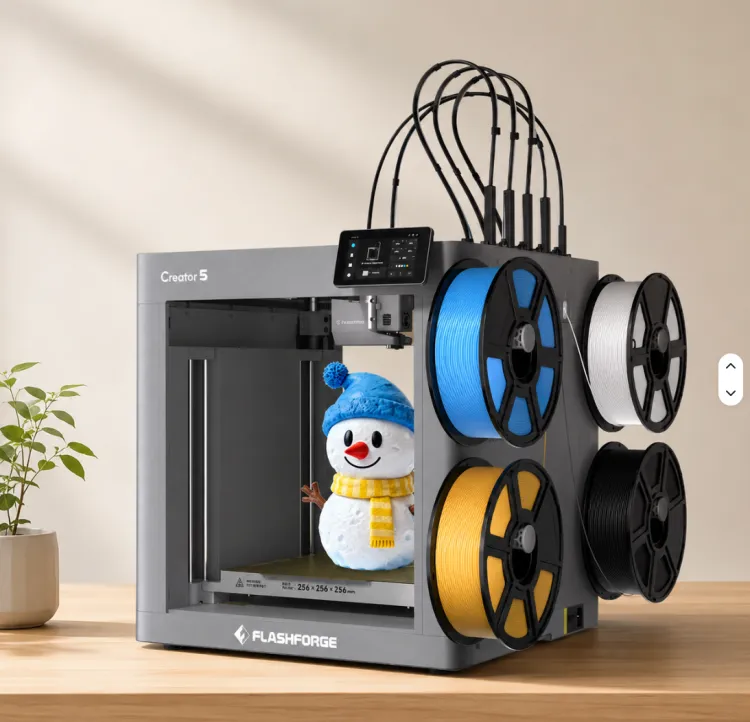

The Flashforge Creator 5 is an advanced CoreXY FDM 3D printer featuring four independent toolheads for true multi-color and multi-material printing without the purge waste associated with single-nozzle color-changing systems. Built around Flashforge's multi-toolhead architecture, the Creator 5 delivers high-speed performance, intelligent automation, and support for a broad range of engineering and composite materials.

With a 256 × 256 × 256 mm build volume, 600 mm/s travel speed, 300 mm/s print speed, and 30,000 mm/s² acceleration, the Creator 5 is designed for rapid prototyping, functional part production, educational use, and professional manufacturing workflows. Automatic leveling, dynamic flow calibration, filament detection, remote monitoring, and fleet management capabilities further streamline operation and improve reliability.

Specifications

Specification	Details
Product Name	Flashforge Creator 5
Printer Type	CoreXY FDM 3D Printer
Extruder System	4 Independent Toolheads
Build Volume	256 × 256 × 256 mm
Layer Thickness	0.1 – 0.4 mm
Maximum Flow Rate	32 mm³/s
Print Speed	Up to 300 mm/s
Travel Speed	Up to 600 mm/s
Acceleration	Up to 30,000 mm/s²
Nozzle Diameter	0.4 mm standard; 0.25 / 0.6 / 0.8 mm optional
Maximum Nozzle Temperature	320°C
Maximum Bed Temperature	120°C
Build Plate	Textured PEI Flexible Steel Plate
Auto Leveling	Automatic
Dynamic Flow Calibration	Auto PA Calibration
Display	4-inch 800 × 480 Full-Color Touchscreen
Connectivity	USB, Wi-Fi
Wi-Fi	2.4 GHz / 5 GHz
Camera	Built-in HD Camera (1280 × 720 @ 30 fps)
Filament Detection	Run-Out Sensor
Power Recovery	Supported
Multi-Printer Management	Supported
Chamber Lighting	Included
Slicer Software	Orca-Flashforge, OrcaSlicer
Dimensions (with holders)	520 × 443 × 710 mm
Dimensions (without holders)	436 × 432 × 480 mm
Net Weight	14 kg
Gross Weight	18 kg
Power Input	100–120V / 200–240V AC, 50/60Hz
Power Consumption	700W
Structure	Open Frame Design

Product Info Gallery

Supported Materials

Recommended Filaments

PLA
PETG
PET
Silk PLA
TPU (90–95A / 64D)
PLA-CF
PETG-CF
PVA
BVOH
S-Multi
S-PATH

Engineering Materials (with enclosure)

ABS
ASA
PA-CF
PET-CF
PAHT-CF
ASA-CF (GF)
ABS-CF (GF)
PPA-CF (GF)

Key Features

4 Independent Toolheads

True multi-color printing.
True multi-material printing.
Eliminates traditional filament purging during color changes.
Supports dedicated support-material nozzles.

CoreXY High-Speed Motion System

Travel speeds up to 600 mm/s.
Acceleration up to 30,000 mm/s².
Optimized for fast production and prototyping.

FlashSwap™ Multi-Nozzle Technology

Independent nozzle workflow.
Reduced material waste.
Faster color transitions compared to AMS-style systems.

Intelligent Automation

Automatic bed leveling.
Automatic toolhead offset calibration.
Dynamic flow compensation.
First-layer optimization.

Professional Print Monitoring

Integrated Full HD camera.
Remote monitoring and management.
Multi-printer fleet support.

Flexible Build Platform

Textured PEI spring-steel plate.
Easy part removal.
Excellent first-layer adhesion.

Typical Applications

Product Development

Concept models
Functional prototypes
Design validation

Engineering & Manufacturing

Jigs and fixtures
Production tooling
End-use parts
Spare parts manufacturing

Multi-Material Projects

Soluble supports
Flexible/rigid combinations
Multi-color consumer products

Education & Research

STEM education
University labs
Research projects

Architecture & Design

Scale models
Presentation prototypes
Artistic and creative projects

Composite Material Printing

Carbon-fiber reinforced parts
Lightweight structural components
Engineering-grade functional parts

Attribute	Details
Printer Type	CoreXY FDM 3D Printer
Extruder System	4 Independent Toolheads
Build Volume	256 × 256 × 256 mm
Layer Thickness	0.1 – 0.4 mm
Maximum Flow Rate	32 mm³/s
Print Speed	Up to 300 mm/s
Travel Speed	Up to 600 mm/s
Acceleration	Up to 30,000 mm/s²
Nozzle Diameter	0.4 mm standard; 0.25 / 0.6 / 0.8 mm optional
Maximum Nozzle Temperature	320°C
Maximum Bed Temperature	120°C
Build Plate	Textured PEI Flexible Steel Plate
Auto Leveling	Automatic Dynamic Flow Calibration
Display	4-inch 800 × 480 Full-Color Touchscreen
Connectivity	USB, Wi-Fi (2.4 GHz / 5 GHz)
Camera	Built-in HD Camera (1280 × 720 @ 30 fps)
Filament Detection	Run-Out Sensor
Power Recovery	Supported
Multi-Printer Management	Supported
Chamber Lighting	Included
Slicer Software	Orca-Flashforge, OrcaSlicer
Dimensions (with holders)	520 × 443 × 710 mm
Dimensions (without holders)	436 × 432 × 480 mm
Net Weight	14 kg
Gross Weight	18 kg
Power Input	100–120V / 200–240V AC, 50/60Hz
Power Consumption	700W
