Electronic Jacquard Knitting Loom Fabric Machine With Shuttleless Loom Attachment
- Section : Machinery
- Category : Industrial Machinery
- SKU : 1600406403009
Knitting Loom Fabric Machine
Jacquard Needles:
- 128, 160, 192, 256, 320, 384, 480
Models (Tapes/Reed Width):
- 4/65, 6/55, 8/30, 10/30, 8/45, 12/25, 8/55, 10/45, 12/30
Motor:
- 2HP: Double rapid
Speed:
- 800-1000 RPM
Heald Frame:
- 2-8 PCS
Design Chain Circle:
- 8-40
Weft Density:
- 3.5-36.7
Normal Attachment:
- 14-30 Yarn creel places, Software, Jacquard normal attachment
Optional Attachment:
- Rubber feeder, Double nook single needle system, Beam, Frequency conversion timing, CAD platesoft

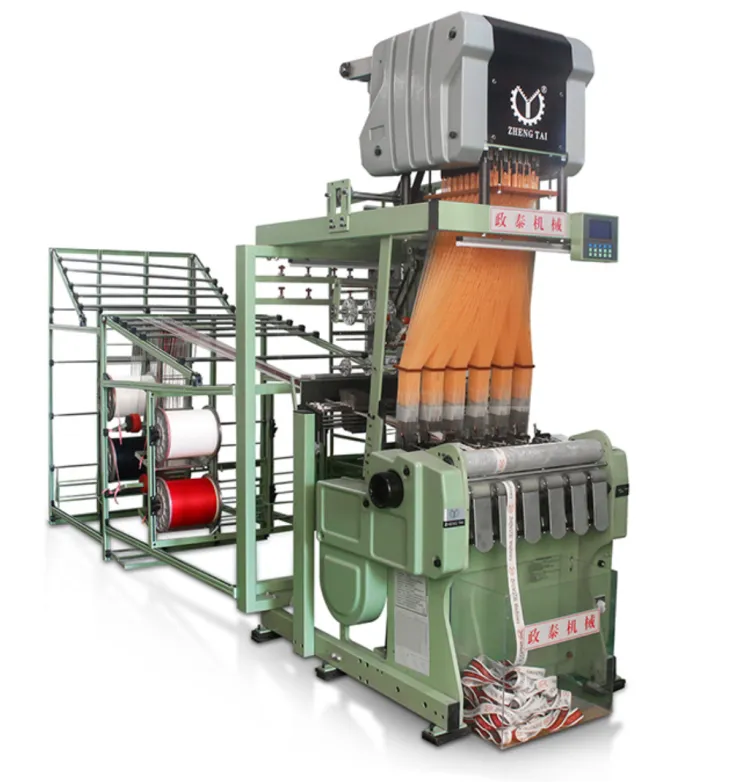

Zhengtai Electronic Jacquard Machine

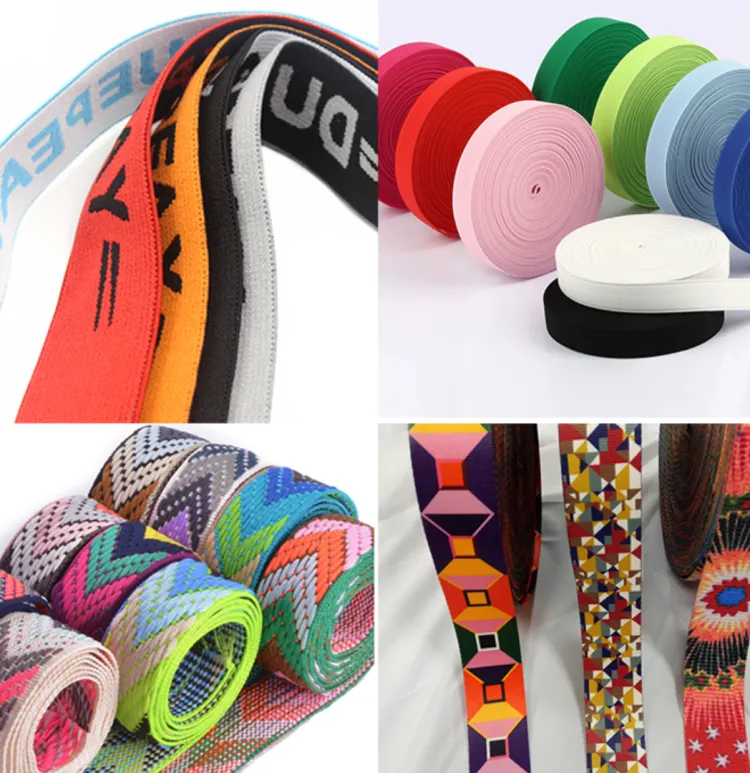

The Jacquard machine is designed to produce various narrow fabric Jacquard belts as per customer requirements, ranging in width from 2 mm to a maximum of 65 mm, and Jacquard hooks from 56 to 800. It is suitable for both elastic and non-elastic Jacquard belts, such as underwear belts, bra belts, backpack shoulder belts, or shoe laces.
| Jacquard loom Series Specifications | |||||||
| Jacquard needles | 128 | 160 | 192 | 256 | 320 | 384 | 480 |
Models
( Tapes/Reed width )
| 4/65
6/55 8/30 10/30 8/45 12/25 8/55 10/45 12/30
| 4/65
6/55 8/30 10/30 8/45 12/25 | 4/65
6/55
| 4/65
6/55 | 4/65 6/55 8/30 10/30 8/45 12/25 8/55 10/45 12/30 | 4/65
6/55 | 4/65
6/55 |
| Motor | 2HP: Double rapid | ||||||
| Speed | 800-1000RPM | ||||||
| Heald frame | 2-8PCS | ||||||
| Design chain circle | 8-40 | ||||||
| Weft density | 3.5-36.7 | ||||||
| Normal attachment | 14-30 Yarn creel places,Software,Jacquard Normal attachment | ||||||
| Optional attachment | Rubber feeder.Double nook single needle system,Beam,Frequency conversion timina,CAD platesoft |
ZhengtaiElectronic Jacquard Machine
The jacquard machine can produce various narrow fabric jacquard belts according to customer's requirements, with a width from 2 mm to a maximum of 65mm, and a jacquard hook from 56 to a maximum of 800. Suitable for elastic or non-elastic jacquard belts, such as underwear belts, bra belts, backpack shoulder belts or shoe laces, etc.
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What types of fabrics can the Electronic Jacquard Knitting Loom produce?
The loom can produce various narrow fabric Jacquard belts, including elastic and non-elastic options suitable for underwear belts, bra belts, backpack shoulder belts, and shoe laces.
2. What is the maximum width of fabric that can be produced?
The maximum width of fabric that can be produced by the loom is 65 mm.
3. How many Jacquard needles does the machine support?
The machine supports Jacquard needles ranging from 128 to 480.
4. What is the motor power of the knitting loom?
The knitting loom is equipped with a 2HP motor that operates on double rapid speed.
5. What is the operational speed of the machine?
The machine operates at a speed of 800-1000 RPM.
6. How many heald frames can the machine accommodate?
The loom can accommodate between 2 to 8 heald frames.
7. What is the weft density range of the loom?
The weft density range of the loom is between 3.5 to 36.7.
8. Does the loom come with software and normal attachments?
Yes, the loom comes with software and normal attachments such as 14-30 yarn creel places and Jacquard normal attachments.
9. Are there optional attachments available for this loom?
Yes, optional attachments include a rubber feeder, double nook single needle system, beam, frequency conversion timing, and CAD plates.
10. What types of Jacquard belts can be produced?
The loom can produce narrow fabric Jacquard belts according to customer specifications, including both elastic and non-elastic designs.
11. Is the loom suitable for beginners?
While the machine is user-friendly, some familiarity with Jacquard weaving may be beneficial for beginners to fully utilize its capabilities.
12. What is the design chain circle range of the loom?
The design chain circle range of the loom is from 8 to 40.
13. Can this loom be used for commercial production?
Yes, the Electronic Jacquard Knitting Loom is designed for both industrial and commercial production needs.
14. What materials can be used with the loom?
The loom is compatible with various yarn materials suitable for producing Jacquard belts, including cotton, nylon, and polyester.
15. What maintenance is required for the loom?
Regular maintenance includes cleaning, lubrication of moving parts, and ensuring that the software is updated for optimal performance.
