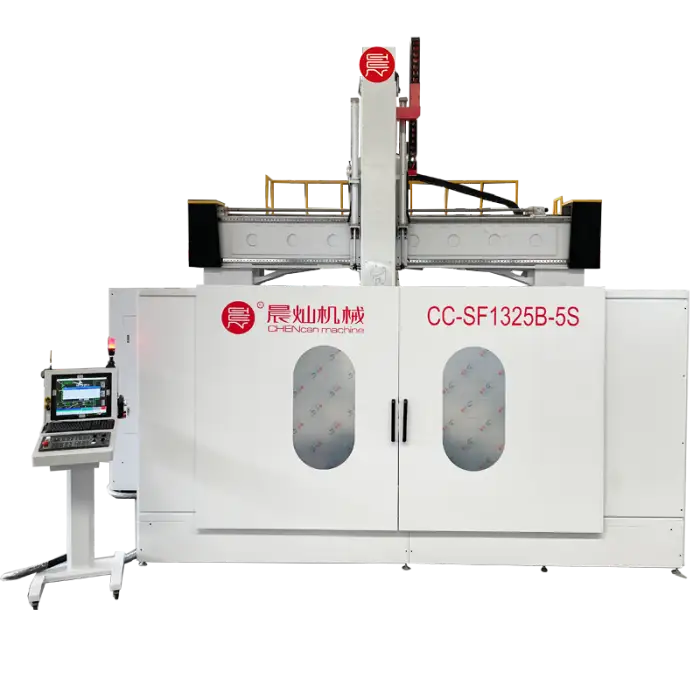

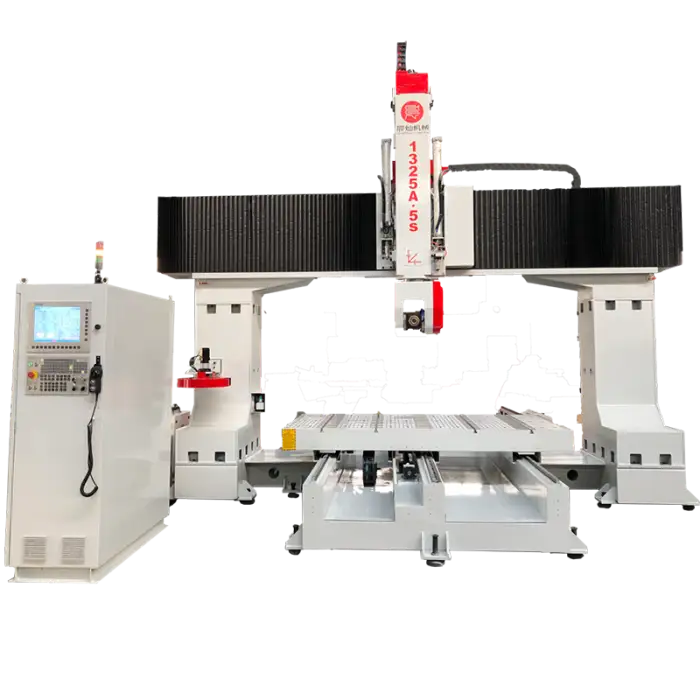

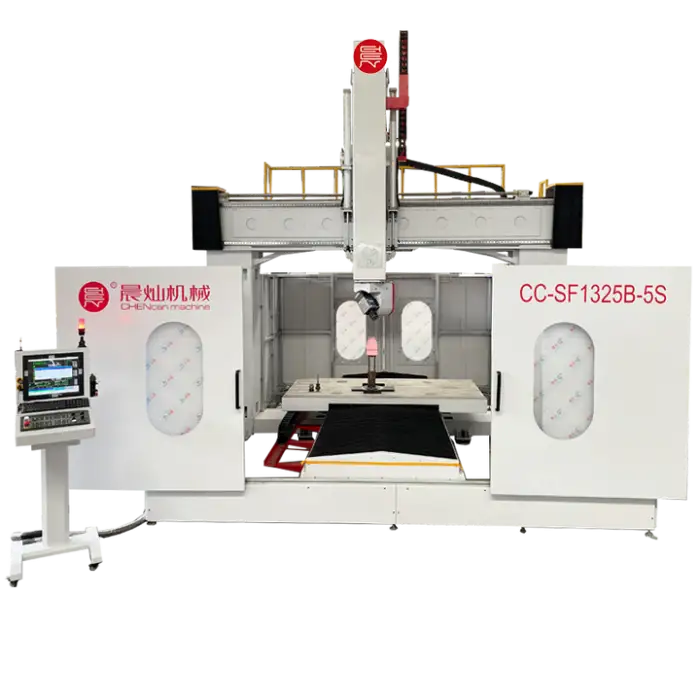

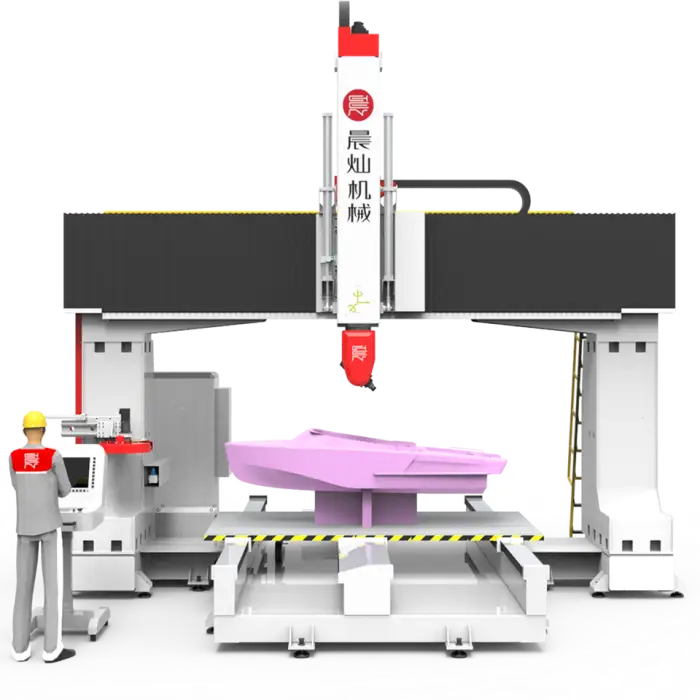

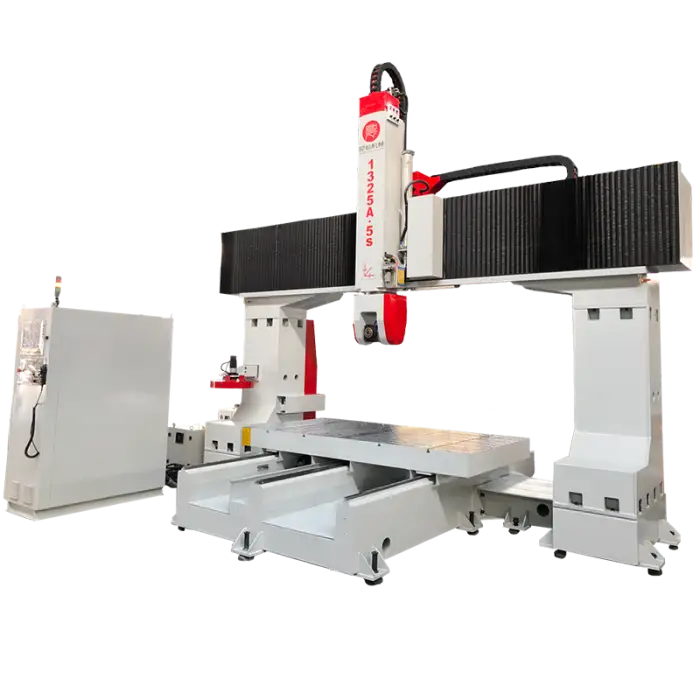

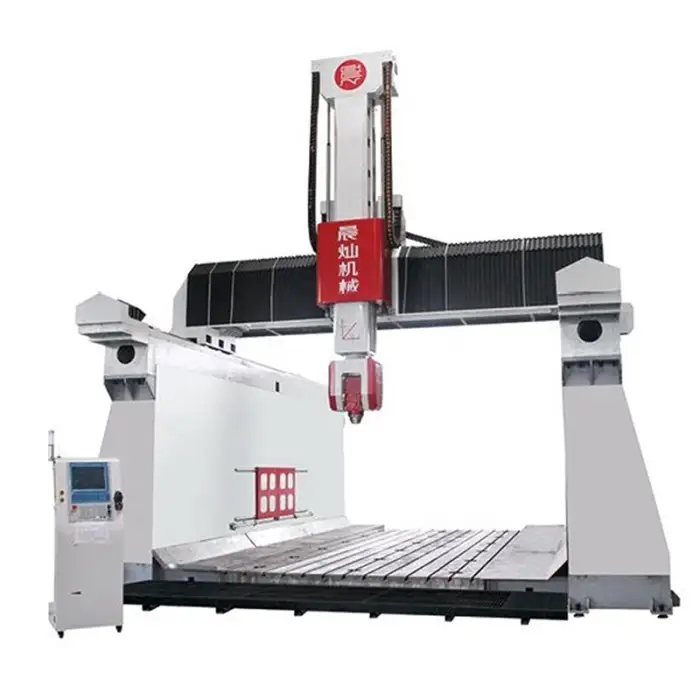

The Composite Thermoformed and Fiberglass Parts Trimming 5-Axis CNC Machining Center is designed to trim and shape composite materials and fiberglass components efficiently.
The 3-axis working area measures 3950mm x 2850mm x 1200mm, while the 5-axis working area is 3000mm x 2000mm x 800mm.
The machine utilizes the Taiwan Syntech Industrial Control System for precise and reliable operation.
The CNC machining center is equipped with a powerful 15KW spindle motor that supports high-speed operations.
The spindle can reach up to 24000 RPM, allowing for precision cutting and efficient machining.
The maximum table load is 2000kg, making it suitable for heavy-duty applications.
The machine offers a repeatability of 0.05mm in the x, y, and z axes, ensuring high precision in machining.
The tool magazine can hold up to 10 tools, allowing for quick changes during machining processes.
The CNC machining center features a fast tool change time of just 2 seconds, enhancing productivity.
This machine is ideal for automotive, marine, aerospace, and furniture manufacturing, among other industries.
Yes, the machining center is designed with user-friendly controls, making it easy for operators to use.
Key applications include trimming composite materials, shaping fiberglass components, and creating custom parts for various industries.
The Composite Thermoformed and Fiberglass Parts Trimming 5-Axis CNC Machining Center weighs approximately 10 tons.
Yes, it is well-suited for manufacturing custom parts and tooling for a variety of applications.
Yes, installation support is typically provided to ensure that the machine is set up correctly and operates efficiently.
