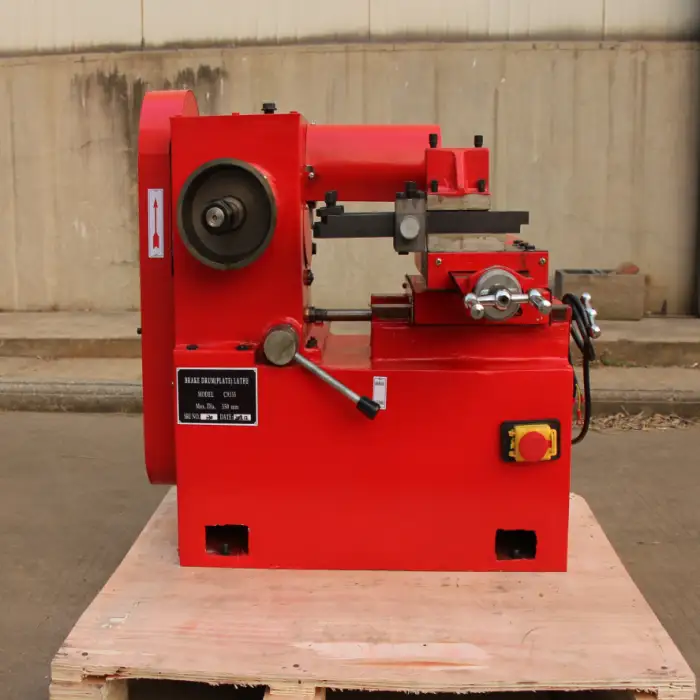

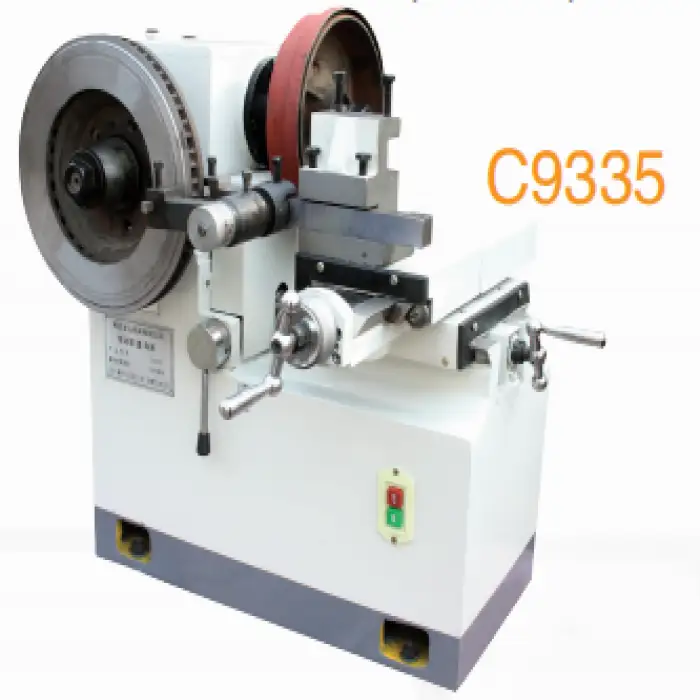

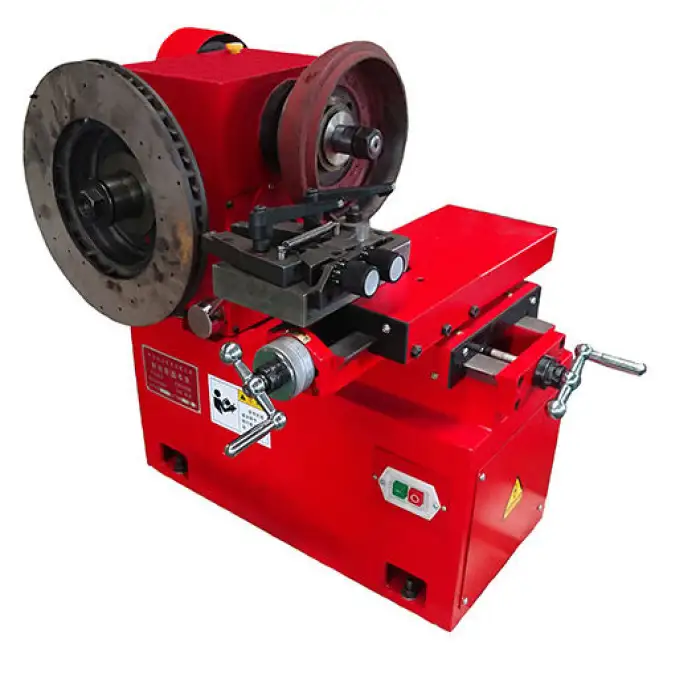

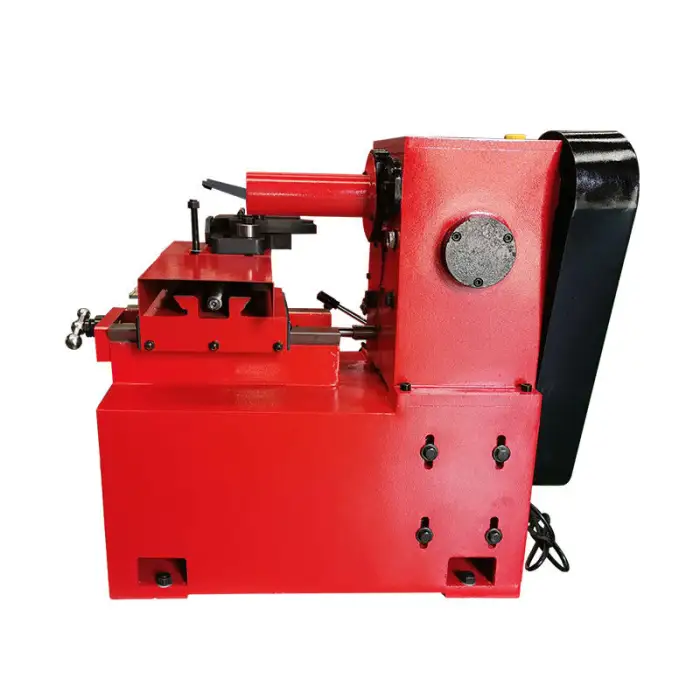

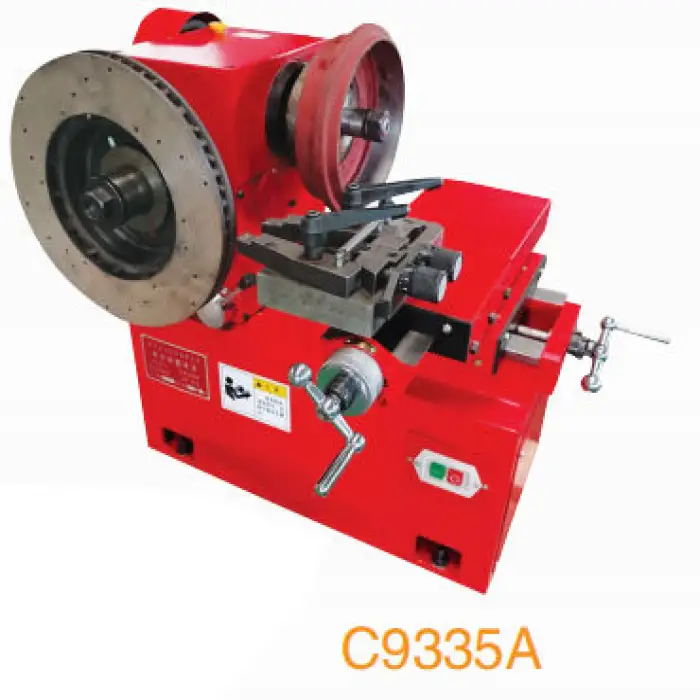

The Brake Disc Drum Lathe Machine C9335 C9335A can handle brake drum and plate diameters ranging from 180mm to 350mm.
The machine is equipped with a powerful motor that has options of either 0.75kW or 1.1kW.
The gross weight of the machine is 260kgs, while the net weight is 200kgs.
The overall dimensions of the Brake Disc Drum Lathe Machine C9335 C9335A are 695mm in length, 565mm in width, and 635mm in height.
Yes, the Brake Disc Drum Lathe Machine C9335 C9335A features semi-automatic operation, making it user-friendly and efficient.
The spindle can rotate at speeds of 75 or 130 revolutions per minute (r/min).
The slide travel distance on the Brake Disc Drum Lathe Machine C9335 C9335A is 100mm.
The Brake Disc Drum Lathe Machine C9335 C9335A comes with a 1-year warranty.
This machine is ideal for automotive repair shops, vehicle service centers, and professional mechanics and technicians.
Yes, the compact design of the Brake Disc Drum Lathe Machine C9335 C9335A makes it suitable for both small and large workshops.
It is designed for brake system maintenance and is perfect for refurbishing both disc and drum brakes.
Regular maintenance is recommended to ensure optimal performance, including checking the motor and spindle for wear.
The packing dimensions of the machine are 870mm in length, 640mm in width, and 800mm in height, which can help in transportation.
The machine's semi-automatic operation, high rotational speed, and ability to handle various brake sizes contribute to its efficiency.
Yes, the Brake Disc Drum Lathe Machine C9335 C9335A is specifically designed for both disc and drum refurbishment.
