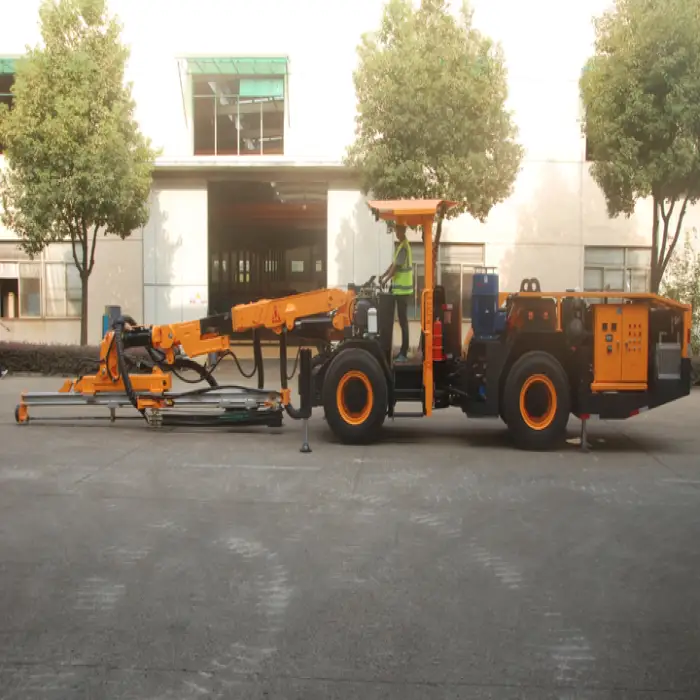

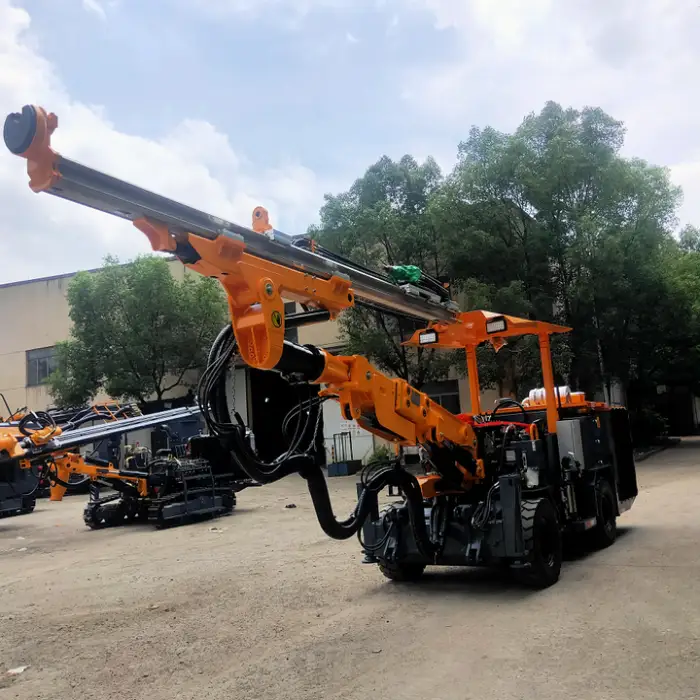

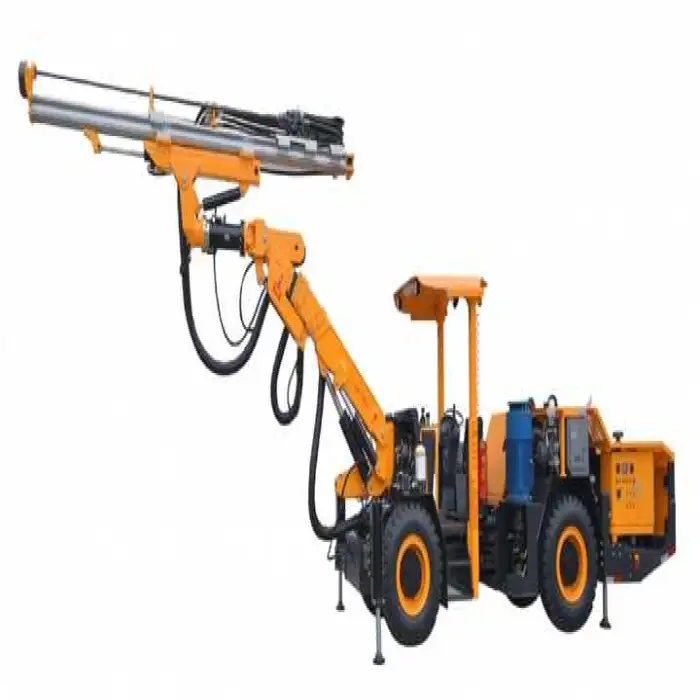

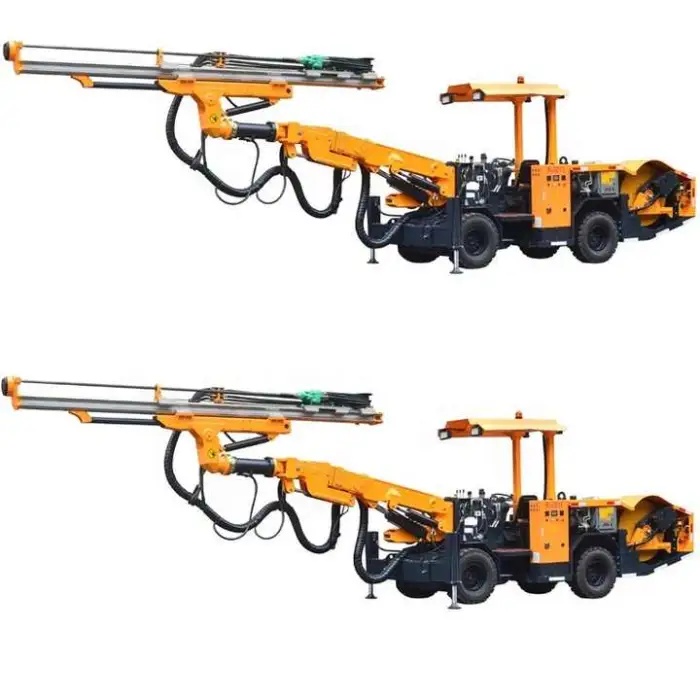

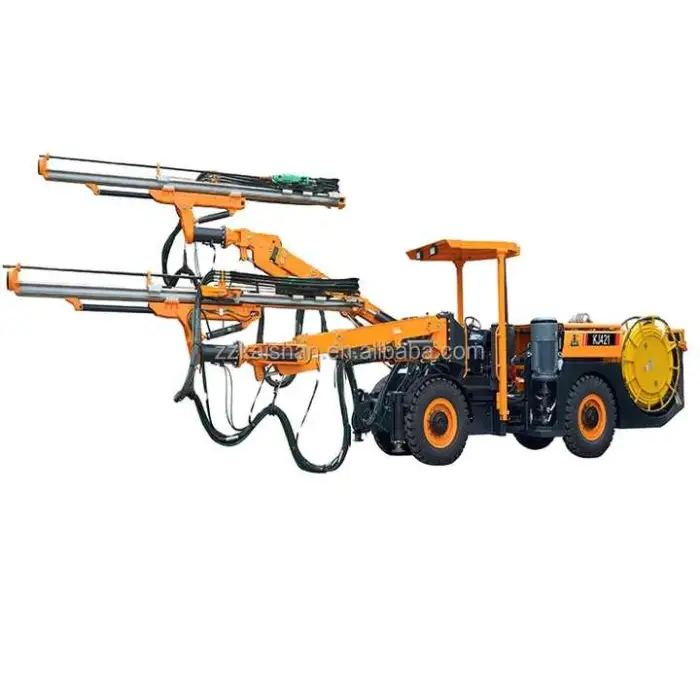

The Boring Drilling Rig KJ211 weighs 6200 KG.
The KJ211 is a full hydraulic tunnel drilling rig designed for underground projects.
The core components of the KJ211 include an engine and a motor.
The unique selling point of the KJ211 is its ability to efficiently create tunnels underground.
The KJ211 can handle a tunnel sectional area of 15m², with dimensions of 4.2m in width and 3.6m in height.
Yes, the KJ211 comes with a machinery test report.
The KJ211 uses a KAISHAN 1xJN5 screw type air compressor.
The KJ211 is suitable for underground tunnel construction, mining operations, utility installation, infrastructure development, and soil and rock drilling for research purposes.
The KJ211 is powered by an electric hydraulic power station with a capacity of 45Kw AC three-phase.
Yes, the KJ211 is built with robust construction to ensure durability and reliable performance in rugged conditions.
The dimensions of the KJ211 are 8600mm in length, 1200mm in width, and 1780mm in height.
The supply ability for the KJ211 is 10 sets per month.
Yes, a video outgoing inspection is provided with the KJ211.
The KJ211 uses a France Montabert 1xHC50/R38 drifter.
The KJ211 features full hydraulic operation for better control, high-performance components, a compact design for maneuverability, and an integrated air compressor for efficient drilling.
