Barcode Scanner 1D & 2D CMOS Scanner with USB and RS-232 Interfaces
| Quantity | Price |
|---|---|
| 10 | R10,000 |
| 15 | R15,000 |
| 20 | R20,000 |
- Section : Computers
- Category : POS Systems
- SKU : 11000001775058

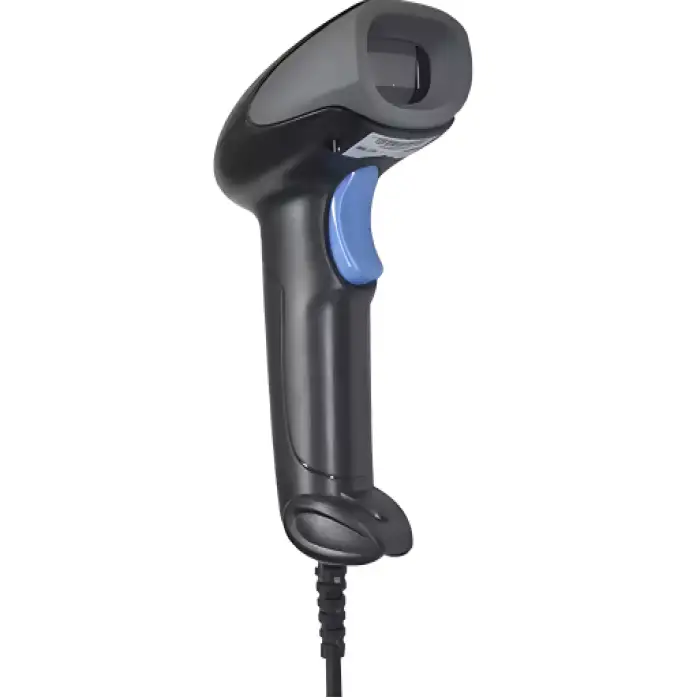

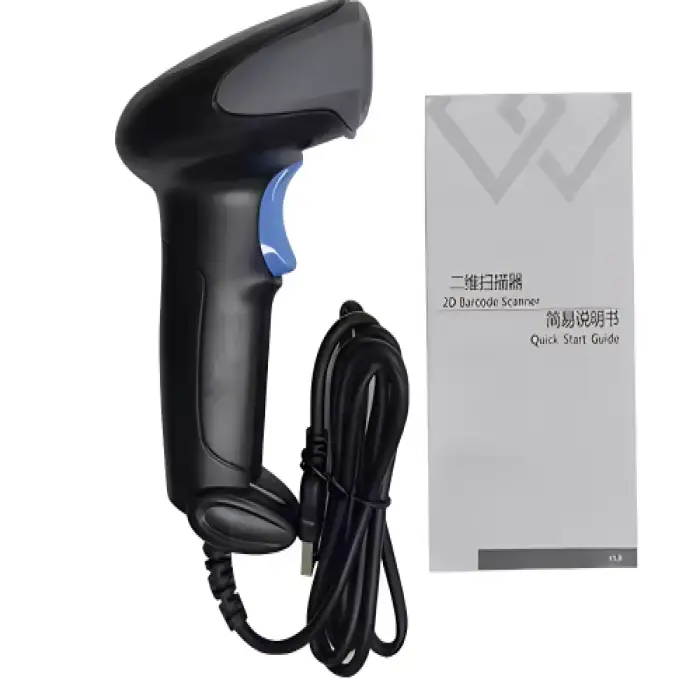

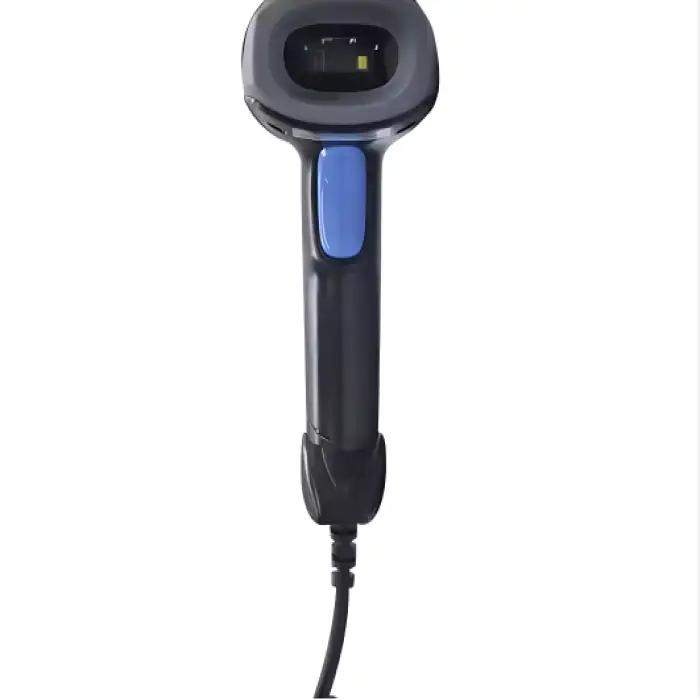

Barcode Scanner 1D & 2D CMOS Scanner with USB and RS-232 Interfaces
The Barcode Scanner 1D & 2D CMOS is a versatile and high-performance scanner designed for efficient barcode reading in a variety of settings. With support for both 1D and 2D barcode types, this scanner delivers fast and accurate scanning for businesses in retail, logistics, and more.
Key Features:
- Type: Barcode Scanner, capable of scanning 1D and 2D barcodes with high accuracy.
- Scan Element Type: CMOS, providing fast, reliable performance for all scanning needs.
- Resolution: 300dpi (640x480) for clear, sharp scans.
- Scan Speed: 300 scans/sec, ensuring rapid processing for high-volume environments.
- Color Depth: 32 Bit for precise color capture and excellent readability.
- Capture Light Source: 617nm LED for optimal illumination.
- Illumination Source: 6500K LED for consistent and reliable lighting.
- Sensitivity: Supports 360° rotation, ±35° tilt, and ±45° deflection, allowing flexible scanning positions.
- Reading Code System: Supports both 1D and 2D barcodes, offering versatility for different barcode formats.
- Size: 170mm (L) x 60mm (W) x 95mm (H), compact and easy to handle.
- Interface Type: USB (standard), with optional RS-232 for a variety of connection needs.
- Voltage: 5V DC ± 20% for stable operation.
- Certification: Complies with FCC, CE, and RoHS standards for quality and safety.
- Color: Blue, with a modern design suitable for various work environments.
- Private Mold: No, available in stock for immediate use.
| Product name | MSL-220 |
| Image Sensor | CMOS |
| Capture light source | 617nm LED |
| Illumination source | 6500KLED |
| Sensitivity | Rotate 360° deflection ±35° tilt ±45° |
| Minimum contrast | 30% |
| Resolution | 300dpi(640*480) |
| Reading code system 1D | 1D: UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon ExtendedCode, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93,Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5,Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5,ISBT Concat |
| Reading code system 2D | 2D: QR Code,PDF417, Data Matrix |
| Voltage | 5V DC ± 20% |
| Current | 190mA during scanning / 10mA during standby |
| Size | 170mm(L)x 60mm(W)x95mm(H) |
| Material | ABS |
| Weight | 165g (including cable) |
| Interface | USB (RS-232 optional) |
| Line length | 150cm |
| Seismic resistance | Resistance to 1m free fall on concrete floor |
| Working temperature | -20℃~50℃ |
| storage temperature | -40℃~70℃ |
| Working humidity | Working humidity |
| Ambient light | 0~86,000lux%~98% |
Applications:
This Barcode Scanner is perfect for use in retail stores, warehouses, logistics centers, and other businesses where quick and accurate barcode scanning is essential.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 25 Dec, 2025, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What types of barcodes can this scanner read?
The Barcode Scanner 1D & 2D CMOS can read both 1D and 2D barcodes, including formats such as UPC, EAN, QR Code, and PDF417.
2. What is the scanning speed of this barcode scanner?
This scanner has a scanning speed of 300 scans per second, making it ideal for high-volume environments.
3. How is the scanner powered?
The scanner operates on a voltage of 5V DC ± 20%, ensuring stable performance.
4. What are the dimensions of the scanner?
The scanner measures 170mm in length, 60mm in width, and 95mm in height, making it compact and easy to handle.
5. What interfaces does this scanner support?
The scanner supports USB as a standard interface, with an optional RS-232 interface for additional connectivity options.
6. Is the scanner suitable for harsh environments?
Yes, the scanner is designed with seismic resistance and can withstand falls from up to 1 meter onto a concrete floor.
7. What is the resolution of the scanner?
The scanner has a resolution of 300dpi (640x480), providing clear and sharp scans.
8. What is the weight of the barcode scanner?
The scanner weighs 165g, including the cable, making it lightweight and easy to use.
9. Does it come with any certifications?
Yes, the scanner complies with FCC, CE, and RoHS standards, ensuring quality and safety.
10. What is the working temperature range for this scanner?
The scanner operates effectively in temperatures ranging from -20°C to 50°C.
11. Can this scanner be used in low light conditions?
Yes, the scanner has a capture light source of 617nm LED and an illumination source of 6500K LED for optimal lighting.
12. Is there a warranty available for the barcode scanner?
Please refer to the manufacturer's policy for warranty information specific to this product.
13. What materials is the scanner made from?
The scanner is made from durable ABS material, ensuring longevity and resistance to wear.
14. What applications are suitable for this barcode scanner?
The scanner is perfect for retail stores, warehouses, logistics centers, and any business requiring quick and accurate barcode scanning.
15. What is the color of the scanner?
The scanner comes in a modern blue color, suitable for various work environments.
