The power supply requirement is 100 ~ 240VAC, 50/60Hz.
The total power consumption is 350W.

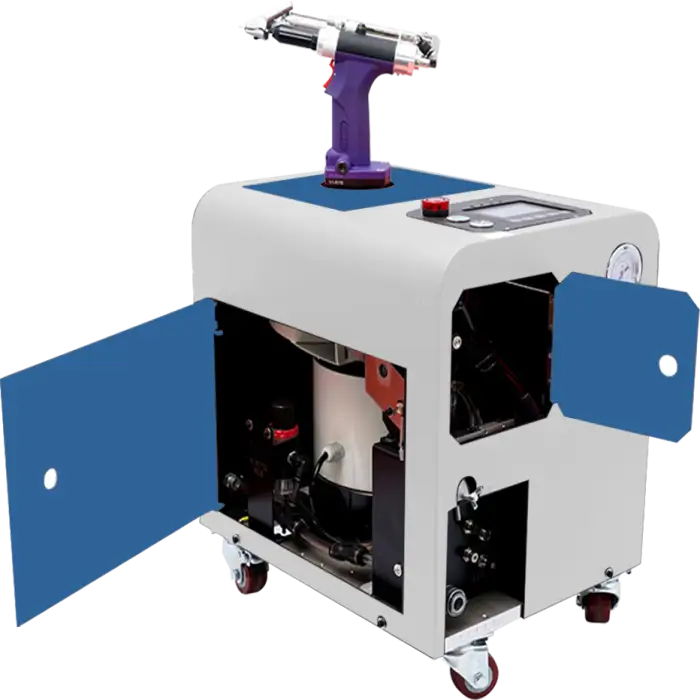

This pneumatic rivet gun can accommodate rivet diameters of 3.2 mm, 4.0 mm, and 4.8 mm.
The feeding tube length ranges from 1.5 to 2 meters.
The feeding efficiency is 45 pieces per minute.
The gross weight of the machine is 60 KG.
The dimensions of the machine are 643 mm x 403 mm x 415 mm.
The required pneumatic power source is between 0.5 to 0.8 MPa.
The warranty period for the Automatic Riveting Feed Machine is 1 year.
The core components include a PLC (Programmable Logic Controller) and a motor.
Key features include automatic operation, high feeding speed, compatibility with various rivet diameters, durable construction, and easy operation with a pneumatic power source.
This tool system is suitable for automotive assembly lines, manufacturing of metal furniture, construction projects, and general industrial applications.
Yes, the machine is designed for easy operation, especially when using the pneumatic power source.
While it is primarily designed for riveting, it can also be applied in various industrial tasks that require reliable fastening solutions.
Regular maintenance includes checking the pneumatic system, ensuring the feeding tube is clear, and keeping the machine clean for optimal performance.
