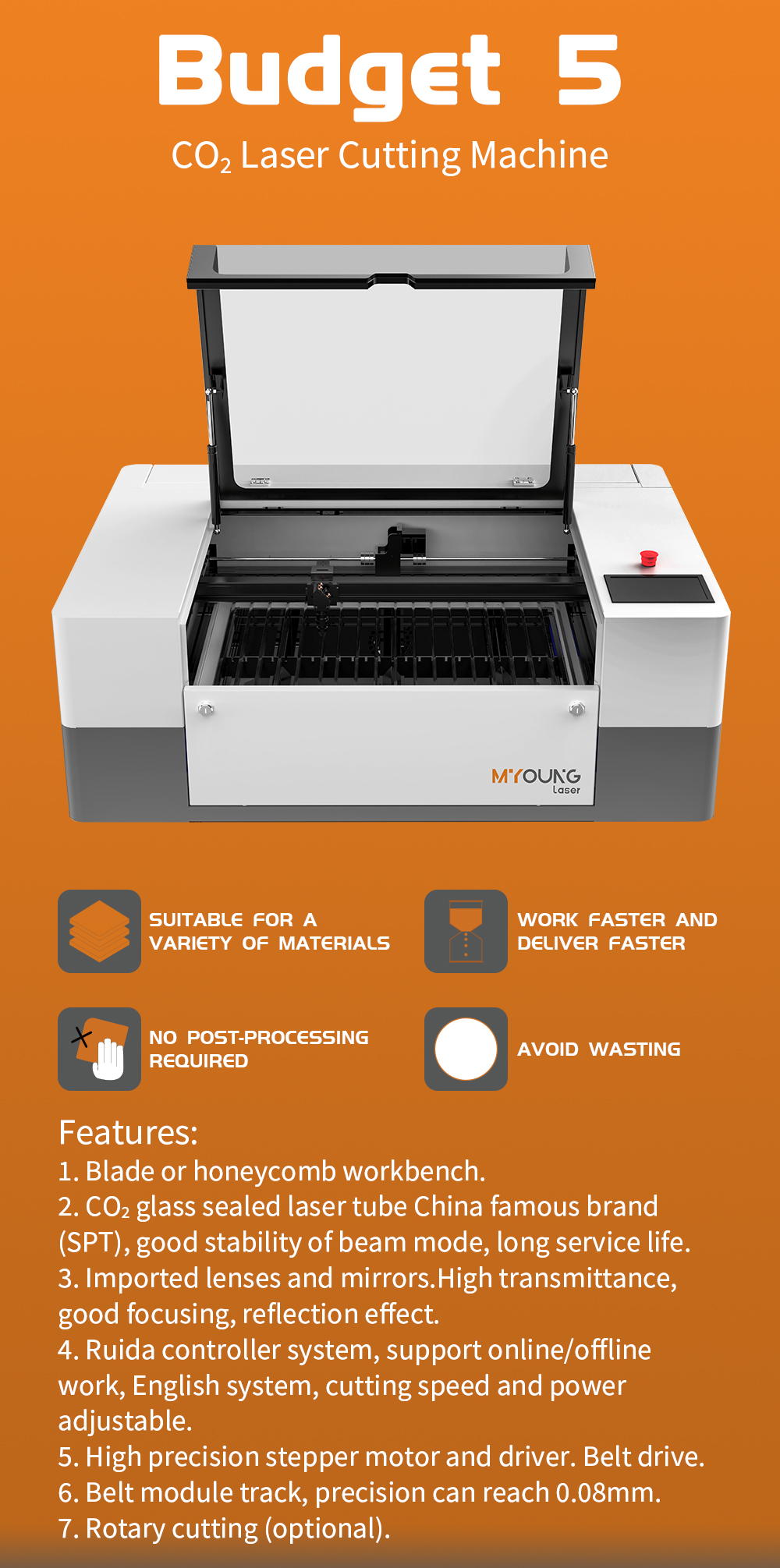

60w 75w Myoung 700*500mm CO2 laser cutting machine With laser cutting acrylic
- Section : Consumer Electronics
- Category : Laser Machines
- SKU : 1600312900753
1.Engraving speed:0-64000mm/min(stepless speed regulating)
2.Laser power:60W laser tube: SPT
3.Graphic format supported:BMP/GIF/JPEG/PCX/TGA/TIFF/PLT/CDR/DWG/DXF
4..Minimum shaping character:letter 1mm,chinese 2mm.
| VOLTAGE | 110V/220V |
| WORKING AREA | 700*500MM/600*400MM |
| CONTROLLER | Ruida 6445G |
| MOTOR | leadshine |
| LASER TUBE | SPT |
| lASER POWER SUPPLY | 60W |
| PRODUCT NAME | CO2 laser engraving machine |
| BRAND | Myoung laser |
| APPLICATION | Wooden plastic MDF Acrylic |
| DIEMONSION | 1400*1030*550mm |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What are the available laser power options for this Myoung CO2 laser cutting machine?
The machine is offered with a 60W CO2 laser as standard. A 75W laser option/upgrade is also available—confirm with the seller when ordering.
2. What is the working area (bed size) of the machine?
Available working areas are 700 × 500 mm or 600 × 400 mm depending on the specific model/configuration you choose.
3. What materials can this CO2 laser cut and engrave?
Common applications include acrylic, wood, MDF, plastics and similar non-metal materials. It can both cut and engrave these substrates; cutting depth depends on material type and laser power.
4. What formats does the machine support for cutting/engraving files?
The controller accepts common graphic formats: BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG and DXF (and other typical formats compatible via the Ruida controller/software).
5. What controller and motion system does the machine use?
This model uses a Ruida 6445GM controller and Leadshine motors for the drive system.
6. What is the maximum engraving speed and how is speed controlled?
Engraving speed is steplessly adjustable from 0 to 64,000 mm/min, allowing fine tuning for different materials and detail levels.
7. What are the minimum readable character sizes for engraving?
Minimum shaping character sizes are approximately: Latin letters 1 mm, Chinese characters 2 mm (actual legibility depends on font and engraving settings).
8. What are the machine physical dimensions and power supply requirements?
Overall dimensions are about 1400 × 1030 × 550 mm. The machine supports 110V or 220V mains—choose the correct voltage version for your region.
9. What cooling and ventilation does the CO2 tube require?
The CO2 glass tube requires continuous water cooling (use a chiller or suitable water-cooling system). You should also use an exhaust fan and air assist to remove fumes and improve cut quality.
10. How thick can this machine cut (for example, acrylic or wood)?
Cutting thickness varies by material, density, focus and laser power. As a guideline, a 60W CO2 typically cuts acrylic in the range of approximately 6–12 mm and woods in a similar variable range; a 75W unit can cut somewhat thicker. Perform test cuts to determine optimal thickness and settings.
11. What connectivity options are available for sending jobs to the machine?
Jobs can be sent via the Ruida controller using USB/SD-card or direct connection to a PC depending on your controller configuration—check with the supplier for exact connectivity options on your unit.
12. What maintenance is required to keep the machine running reliably?
Regular tasks include: keep lenses and mirrors clean, maintain correct water temperature and quality for the laser tube, check and adjust mirror alignment, lubricate motion rails as recommended, and inspect belts/drive components periodically.
13. What is the expected lifetime of the CO2 laser tube and replacement advice?
Typical glass CO2 tube life is variable but often reported in the thousands of hours (many users see several thousand to ~8,000–10,000 hours) depending on usage and maintenance. Replace the tube when power degrades or it fails; always follow safe handling procedures.
14. Are safety features included and what precautions should I take?
The machine includes basic safety features like an emergency stop; you must also use appropriate eyewear, ensure proper ventilation and exhaust, use the water chiller, and operate the machine in a well-ventilated area. Follow local safety regulations and the supplier's safety instructions.
15. What warranty, support and spare parts availability can I expect?
Warranty terms and after-sales support vary by seller. Contact the supplier for exact warranty period, available spare parts (mirrors, lenses, tubes, power supplies), and technical support or training options before purchase.
