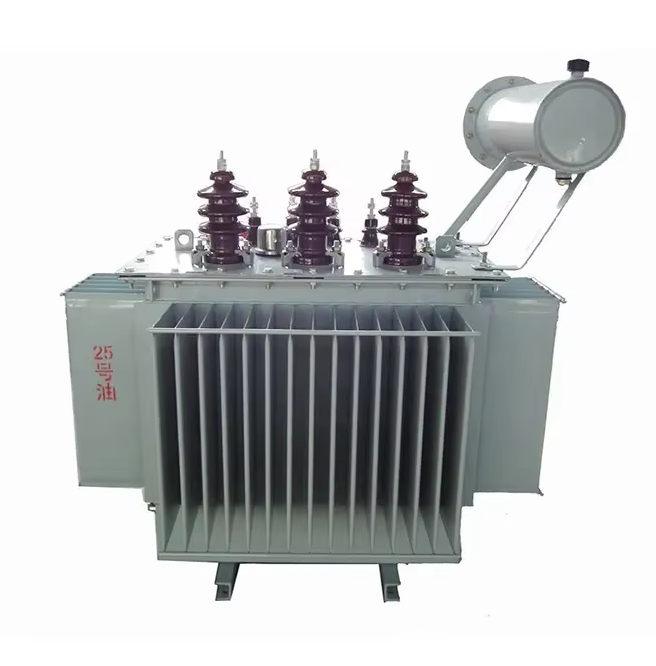

The rated capacity of the transformer is 500 kVA.
The high voltage options for this transformer are typically 11 kV or 10 kV.
The low voltage rating for this transformer is typically 0.4 kV.
The impedance of the transformer is around 4%.
The approximate dimensions are H 932 mm × W 1102 mm × L 1652 mm.
This transformer features aluminum winding.
The weight of the transformer is 1360 kg.
The overall dimensions of the transformer with the oil conservator are 1640 mm × 1160 mm × 1680 mm.
Yes, the oil-immersed design typically makes it suitable for outdoor installation, but please consult local regulations.
Regular maintenance includes checking oil levels, monitoring for leaks, and periodic testing of electrical parameters.
An oil-immersed transformer uses oil as an insulating and cooling medium, allowing for efficient heat dissipation.
Common applications include industrial facilities, commercial buildings, and power distribution networks.
Yes, it can be utilized in renewable energy systems, such as solar or wind power installations, for voltage transformation.
Safety features may include pressure relief devices, temperature monitoring, and protective relays, depending on the design specifications.
Installation should be performed by qualified personnel to ensure safety and compliance with local regulations.
