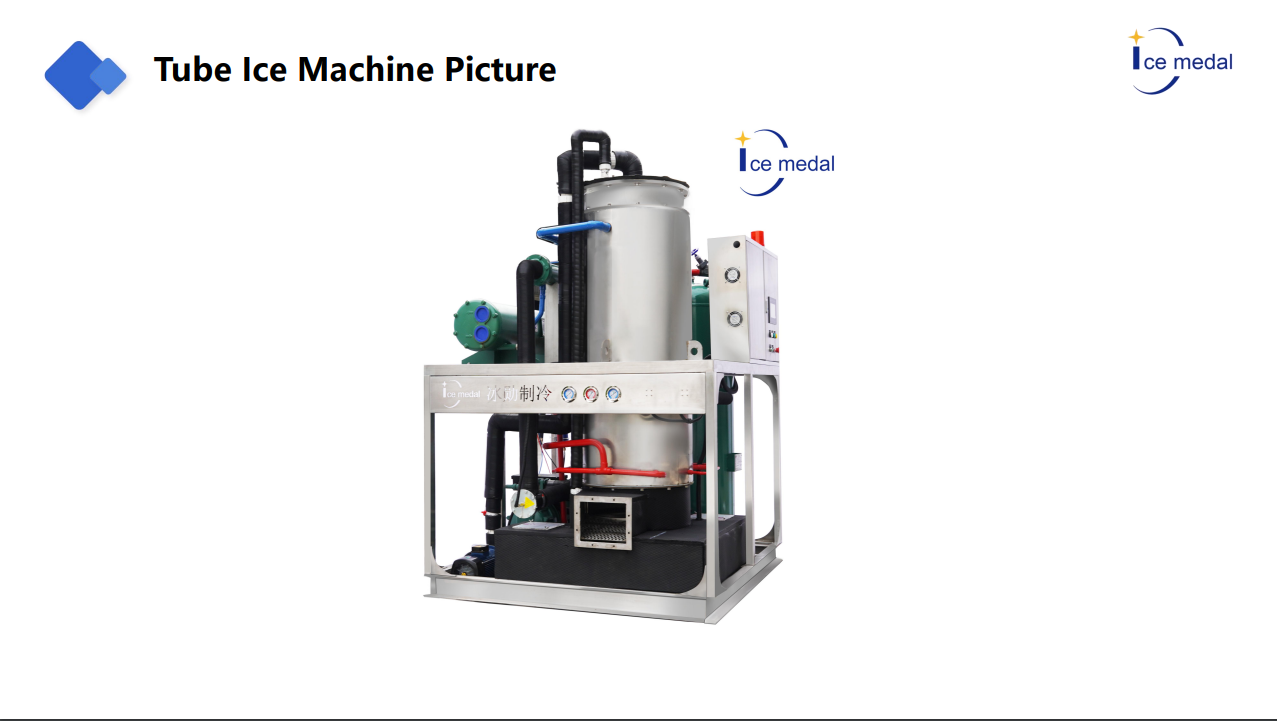

5 Ton Industrial Automatic Cylindrical Tube Ice Machine
- Section : Appliances
- Category : Ice Makers
- SKU : 1601229013415
Product Description
10 ton tube ice machine is a split type ice machine. The ice making part is set apart from the main body, so that you can design the ice plant in a better way to use all the space. It is recommended to equip a screw type ice storage with cold source. Then the tube ice could last over night before packing.
The ice tube is thick and crystal clear, and it takes a long time to melt or store. The gas permeability is good so it is widely used in daily food, fruit and vegetable preservation, aquatic products preservation, etc.
| IMT10 10 ton per day Tube Ice Machine parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
| Brand Compressor | Model | 6FE-50 | ||
| Refrigerating capacity(kw) | 79 | |||
| Power(Kw) | 27.9 | |||
| Condenser | Model | WN-55 | ||
| Heat exchange capacity(kw) | 164.5 | |||
| Condensing Temperature | Temperature(℃) | 40 | ||
| Evaporating Temperatue | Temperature(℃) | -12 | ||
| Ambient Temperature | Temperature(℃) | 32 | ||
| Water Supply Temperature | Temperature(℃) | 20 | ||
| Refrigerant | R404a | |||
| Power Supply | V/P/HZ | 380/3/50 | ||
| Motor Power | Ice Cutting Motor(kW) | 1.5 | ||
| Recircling Pump(kW) | 1.5 | |||
| Cooling Tower | Model | LX-60 | ||
| Power(kw) | 1.5 | |||
| Cooling Pump | Model | GD80-12 | ||
| Power(kw) | 4 | |||
| Cooling Fan Power | Power(kw) | 1.5 | ||
| Water Cooling Machine Dimension | L*W*H(mm) | 1900*1600*1850 | ||
| Refrigerant Quantity | kg | 250 | 275 | 300 |
| Machine Weight | kg | 3500 |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the production capacity of the 5 Ton Industrial Automatic Cylindrical Tube Ice Machine?
The machine has a production capacity of 5 tons of tube ice per day.
2. How does the split design of the ice machine benefit my operation?
The split design allows for better spatial organization of your ice plant, enabling more efficient use of space by separating the ice-making unit from the main body.
3. What type of ice does this machine produce?
This machine produces thick, crystal-clear tube ice which is known for its longevity in melting and its good gas permeability.
4. What is the recommended storage solution for the tube ice produced?
It is recommended to equip a screw-type ice storage with a cold source to ensure the tube ice can last overnight before packing.
5. What refrigerant does the machine use?
The 5 Ton Industrial Automatic Cylindrical Tube Ice Machine uses R404a refrigerant.
6. What are the dimensions of the cooling machine?
The cooling machine dimensions are 1900mm in length, 1600mm in width, and 1850mm in height.
7. What is the power supply requirement for this ice machine?
The power supply requirement for the machine is 380V, 3-phase, and 50Hz.
8. How much does the machine weigh?
The 5 Ton Industrial Automatic Cylindrical Tube Ice Machine weighs approximately 3500 kg.
9. What is the ambient temperature range for optimal operation?
The optimal ambient temperature range for the machine's operation is up to 32°C.
10. Can this machine be used for preserving food and aquatic products?
Yes, the tube ice produced is widely used for preserving food, fruits, vegetables, and aquatic products.
11. What is the evaporating temperature of the machine?
The evaporating temperature of the machine is -12°C.
12. How does the cooling tower function in this machine?
The cooling tower helps dissipate heat from the refrigerant, ensuring efficient operation of the ice-making process.
13. What is the motor power for the ice cutting motor?
The ice cutting motor has a power rating of 1.5 kW.
14. How is the machine's refrigerating capacity rated?
The refrigerating capacity of the machine is rated at 79 kW.
15. Is installation of the machine difficult?
Installation should be performed by qualified personnel to ensure proper setup and functionality, but the split design facilitates easier installation.
