30m Solar Pile Driver Machine 88kw Photovoltaic Solar Project Hard Rock Crawled DTH Drill Rig Rotary Drilling Rig Core Motor
- Section : Machinery
- Category : Gas Generation Equipment
- SKU : 1600852064278

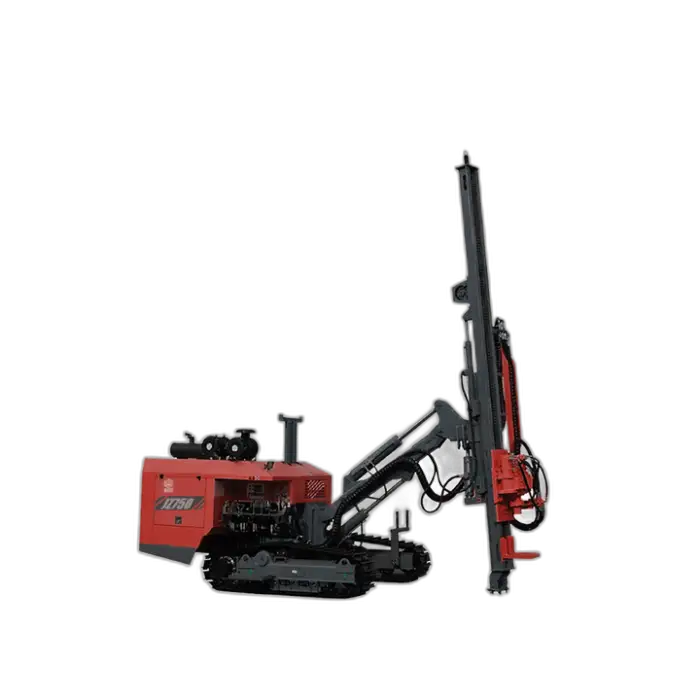

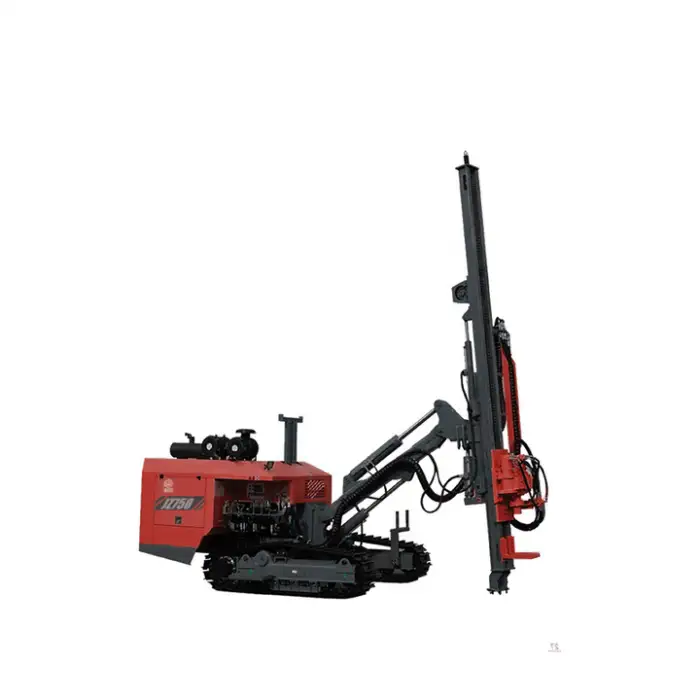

30m Solar Pile Driver Machine 88kw Photovoltaic Solar Project Hard Rock Crawled DTH Drill Rig Rotary Drilling Rig Core Motor
The 30m Solar Pile Driver Machine is a powerful and efficient drilling solution designed for photovoltaic solar projects. This advanced drilling rig can tackle hard rock with ease, making it ideal for various drilling needs. With its diesel engine and robust design, this machine is ready to perform deep core drilling in challenging environments.
Specifications
| Attribute | Details |
|---|---|
| Type | Rotary Drilling Rig |
| Power Type | Diesel |
| Use | Ore |
| Drilling Diameter | 260-500mm |
| Drilling Depth | Max 30m |
| Weight | 6800 KG |
| Engine | Diesel Engine |
| Rated Power | 88 kw |
| Rotary Speed | 0~80r/min |
| Working Pressure | 1.0-2.4 Mpa |
| Traveling Speed | 0-3 km/h |
| Dimensions (L*W*H) | 6000*2380*2500mm |
Key Features
- Drill anywhere you want to drill.
- Designed for tough rock conditions.
- High power and efficiency with an 88kw diesel engine.
- Mobility with a crawler system for easy movement.
- Robust construction for long-lasting performance.
Applications
- Photovoltaic solar project installations.
- Deep core drilling for mineral exploration.
- Geotechnical investigations in challenging terrains.
- Construction projects requiring deep foundation drilling.
- Mining operations needing efficient rock drilling.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum drilling depth of the 30m Solar Pile Driver Machine?
The rig is rated for a maximum drilling depth of 30 meters.
2. What drilling diameters can this machine handle?
The rig supports drilling diameters from 260 mm to 500 mm.
3. What type of engine and power output does the machine have?
It is powered by a diesel engine with a rated power of 88 kW.
4. Can this rig drill through hard rock?
Yes. The rig is designed for tough rock conditions and is compatible with DTH (down-the-hole) hammers and appropriate drilling tools for hard rock drilling.
5. Is the machine mobile on site?
Yes. The rig uses a crawler undercarriage for site mobility and can travel at speeds up to 3 km/h, enabling movement across uneven terrain.
6. What are the machine dimensions and shipping weight?
Machine dimensions are approximately 6000 mm (L) x 2380 mm (W) x 2500 mm (H), and the operating weight is about 6,800 kg.
7. What is the rotary speed and working pressure range?
Rotary speed ranges from 0 to 80 rpm. Working hydraulic pressure is typically in the 1.0–2.4 MPa range.
8. Can this rig be used for photovoltaic solar pile installations?
Yes. It is specifically suited for photovoltaic solar projects, drilling pile holes for foundations and mounting structures, and can be equipped with pile-driving or anchoring accessories if required.

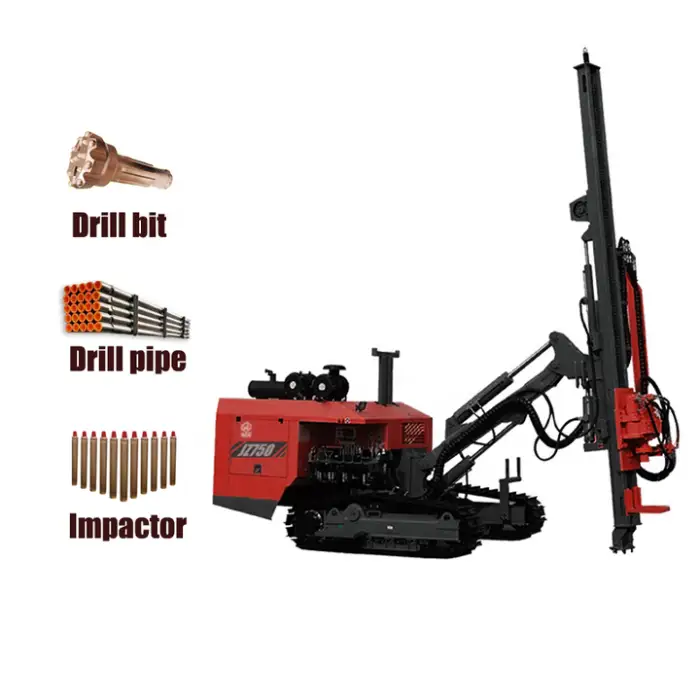

9. Which drilling accessories and tooling are compatible?
Common compatible tools include DTH hammers and bits, drilling rods, core barrels, augers, and pile-driving adapters. Confirm tooling sizes with the supplier to match the 260–500 mm diameter range.
10. What operator qualifications are required?
Operators should be trained and licensed according to local regulations for heavy drilling equipment. Familiarity with rotary/DTH drilling, crawler operation, and safety procedures is recommended.
11. What are the routine maintenance requirements?
Routine maintenance includes daily inspections (hydraulics, engine oil, coolant, filters, crawl tracks), scheduled engine oil and filter changes, checking drill rods and bit wear, and following the manufacturer's maintenance manual for service intervals.
12. How is the machine transported to a site?
Because the rig weighs about 6.8 tonnes and measures 6 m in length, it is typically transported on a flatbed truck or low-bed trailer. A crane or forklift may be needed for loading/unloading depending on site constraints.
13. What safety measures should be followed during operation?
Follow standard drilling safety: use appropriate PPE, ensure stable positioning and ground bearing capacity, secure bystanders and equipment, follow lockout/tagout for maintenance, and adhere to the manufacturer's operational and emergency procedures.
14. Is spare parts support and after-sales service available?
Spare parts and after-sales service availability varies by supplier. Ask your vendor about spare parts kits (filters, seals, wear components), local service centers, and lead times before purchase.
15. Can the machine be customized for specific project needs?
Yes. Many suppliers offer customization options such as alternative tooling packages (DTH hammers, core barrels), pile-driving adapters, hydraulic configurations, or electrical control options. Contact the manufacturer or dealer to discuss project-specific modifications.
