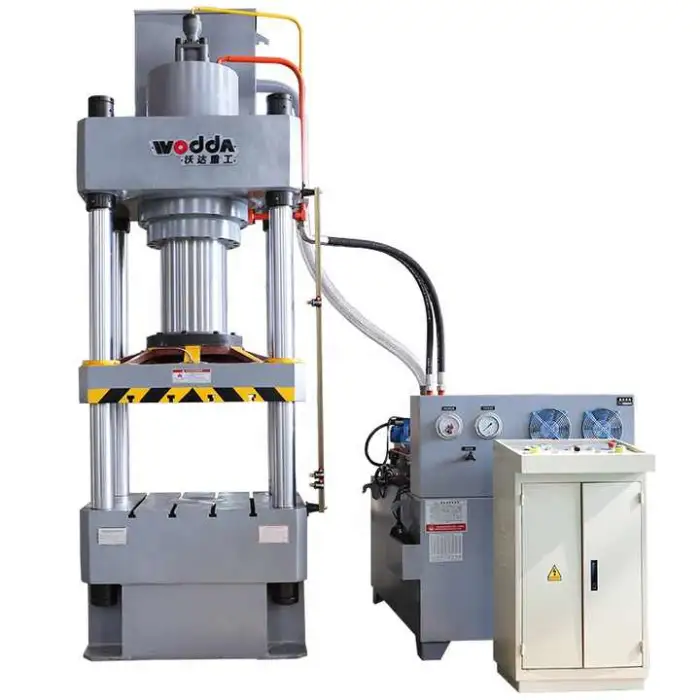

The hydraulic press has a maximum load capacity of 200 tons.
The machine can operate on 220V, 380V, or 450V power sources.
The motor power of the machine is 7.5 kW.
The dimensions of the machine are 1450mm (L) x 1000mm (W) x 280mm (H).
The slide stroke length is 500 mm.
Yes, the machine is CE and ISO certified, ensuring quality and safety.
The weight of the 200 Ton Hydraulic Press Machine is 4.2 tons.
The open height of the hydraulic press is 900 mm.
The machine is suitable for sheet metal stamping, deep drawing operations, automotive part manufacturing, composite material pressing, and general industrial pressing tasks.
The ejector force of the machine is 500 kN.
The return force of the hydraulic press is 2000 kN.
The four-column design provides enhanced stability and accuracy during operation.
Yes, the 200 Ton Hydraulic Press Machine is suitable for hydraulic punching applications.
The worktable size options are 800x800 mm or 1000x1000 mm.
Industries such as automotive manufacturing, metalworking, and composite material production can benefit from this hydraulic press.
